OVERVIEW
Monitor 6 channels simultaneously with Calex Excelog-6
This device features 4 thermocouple inputs and 2 RTD inputs, allowing simultaneous or individual displayand logging of all 6 channels. It supports data logging to SD Card or PC via USB interface, and can be powered by a built-in battery, USB, or mains adapter. The touch screen with backlight and built-in stand enhance usability. It comes with free software and supports Modbus protocol for compatibility with third-party software. Additionally, it includes a 2-channel scrolling temperature chart and alarm indication for each channel.
Features
- 4 x thermocouple inputs and 2 x RTD inputs

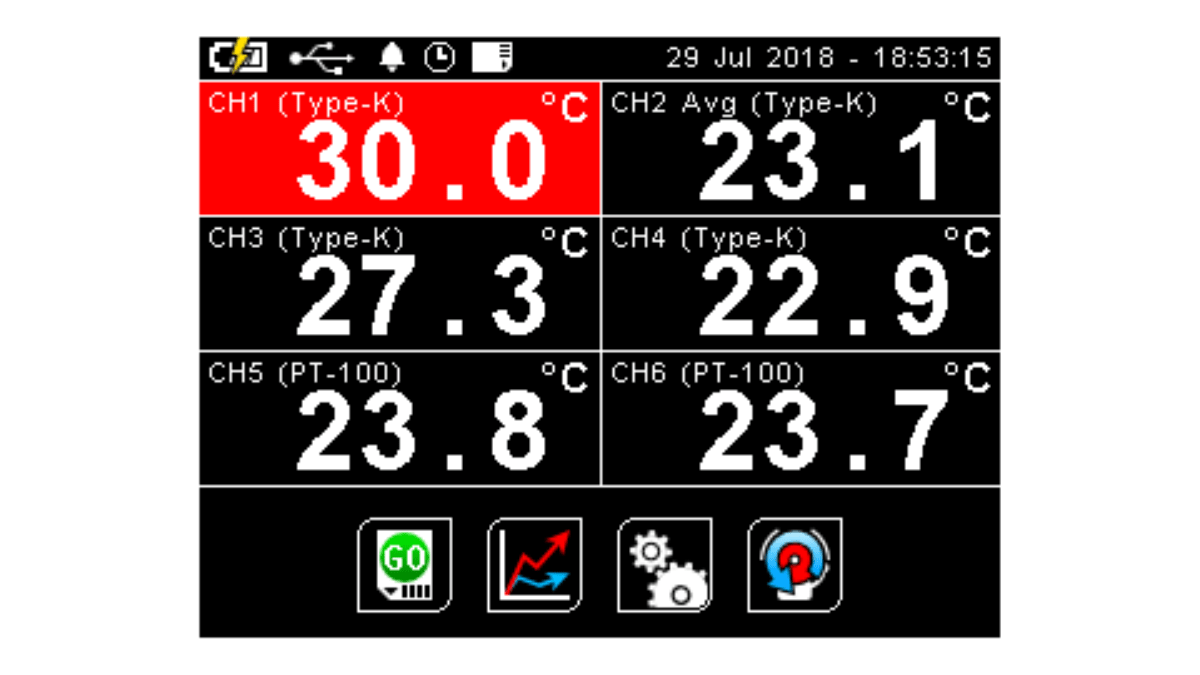

- Display and log all 6 channels simultaneously or individually
- Data logging to SD Card, or PC via USB interface
- Powered by built-in battery, USB or mains adapter (included)
- Touch screen with backlight

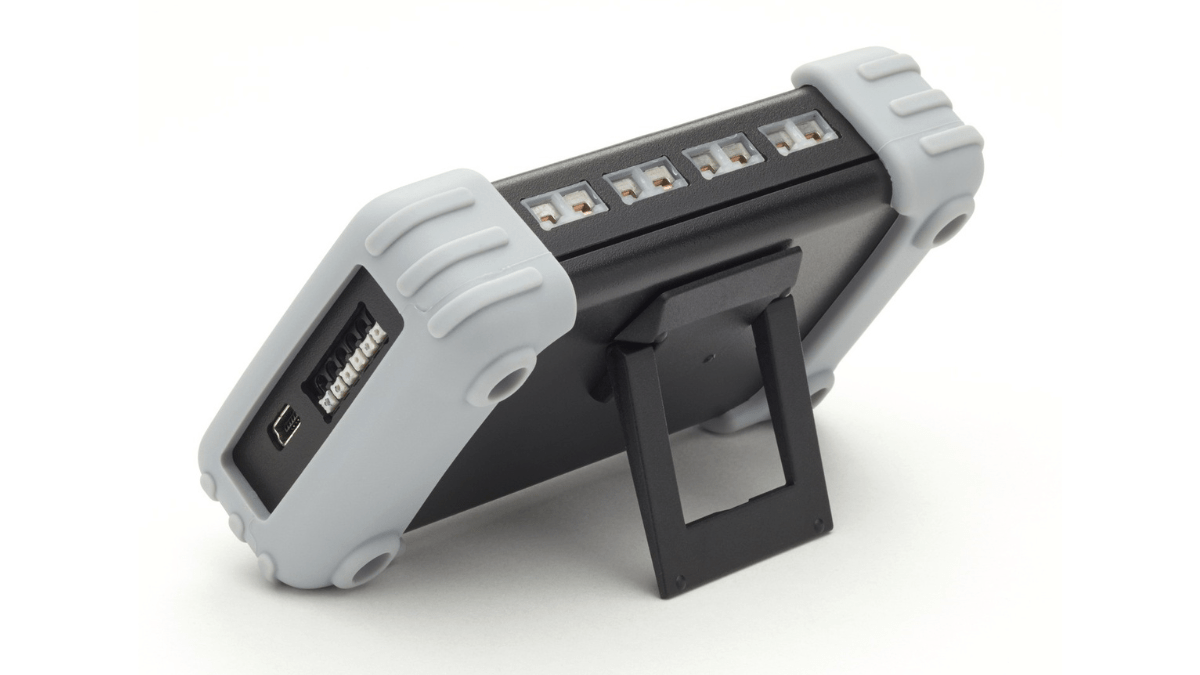

- Built-in stand
- Free software available; Modbus protocol allows use with third-party software

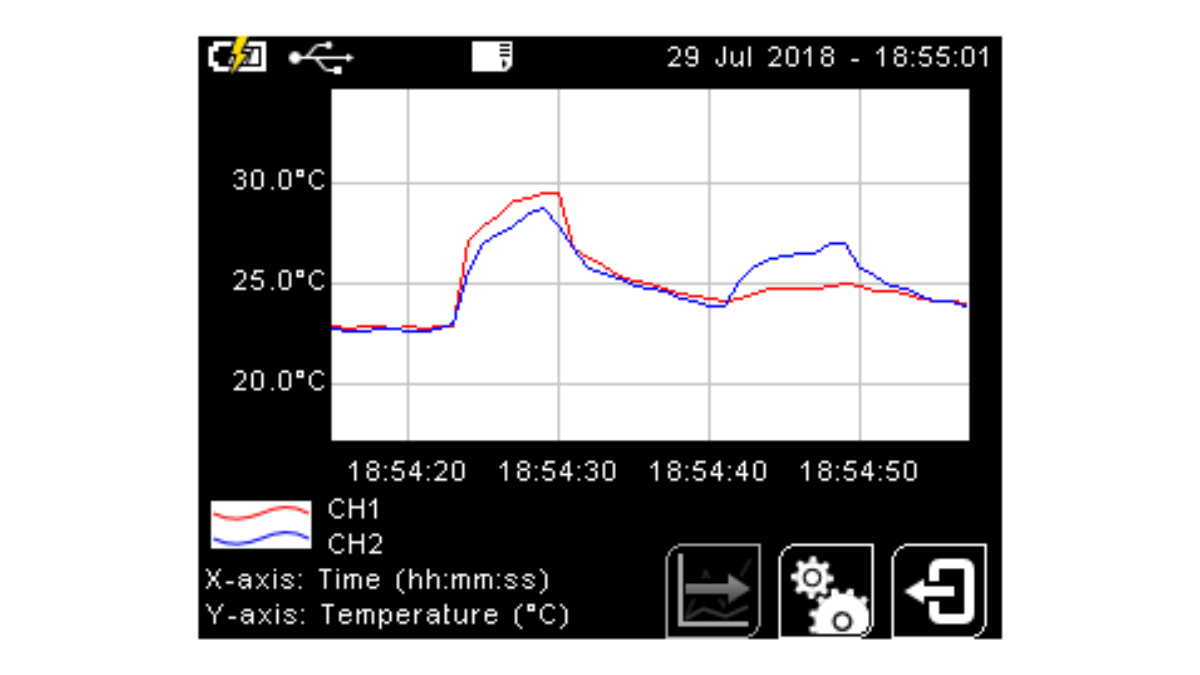

- 2-channel scrolling temperature chart

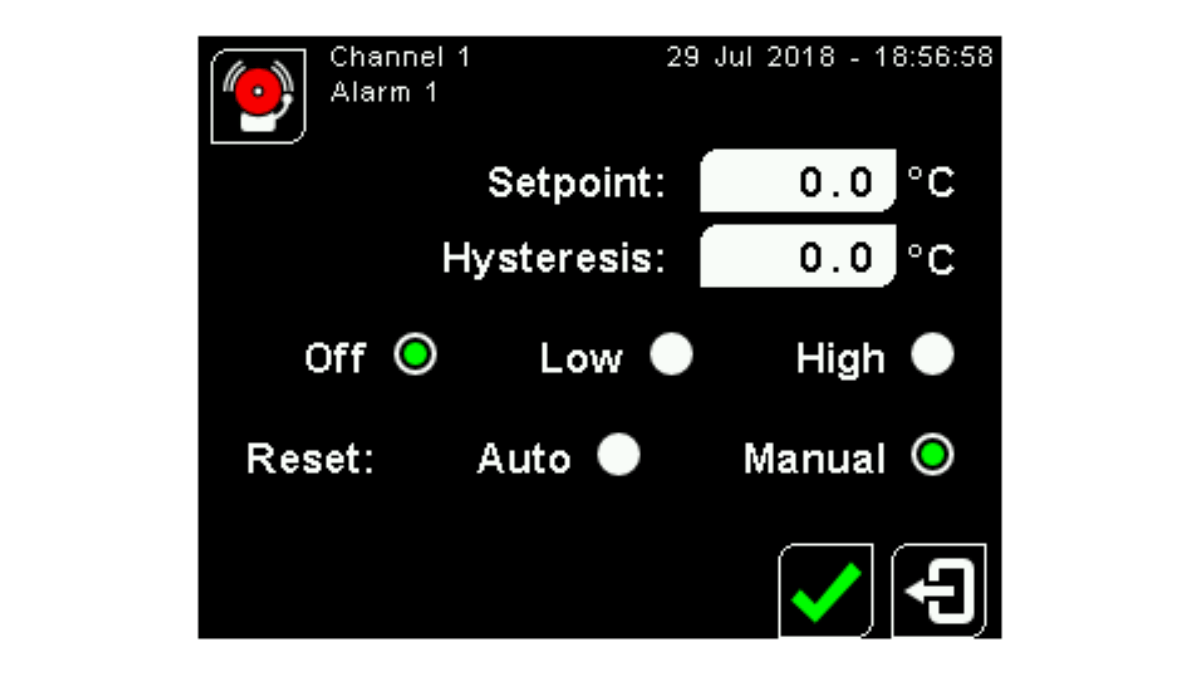

- Alarm indication for each channel
Interface Features
- Intuitive touch screen interface

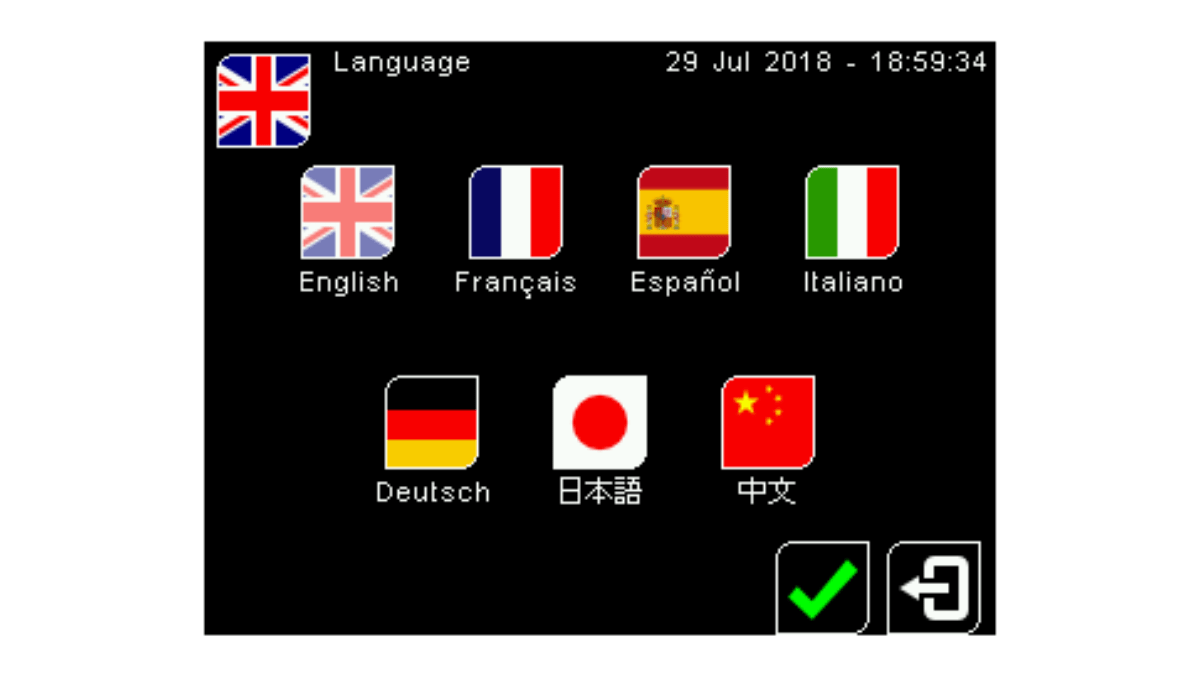

- English, Spanish, French, German, Italian, Chinese and Japanese languages

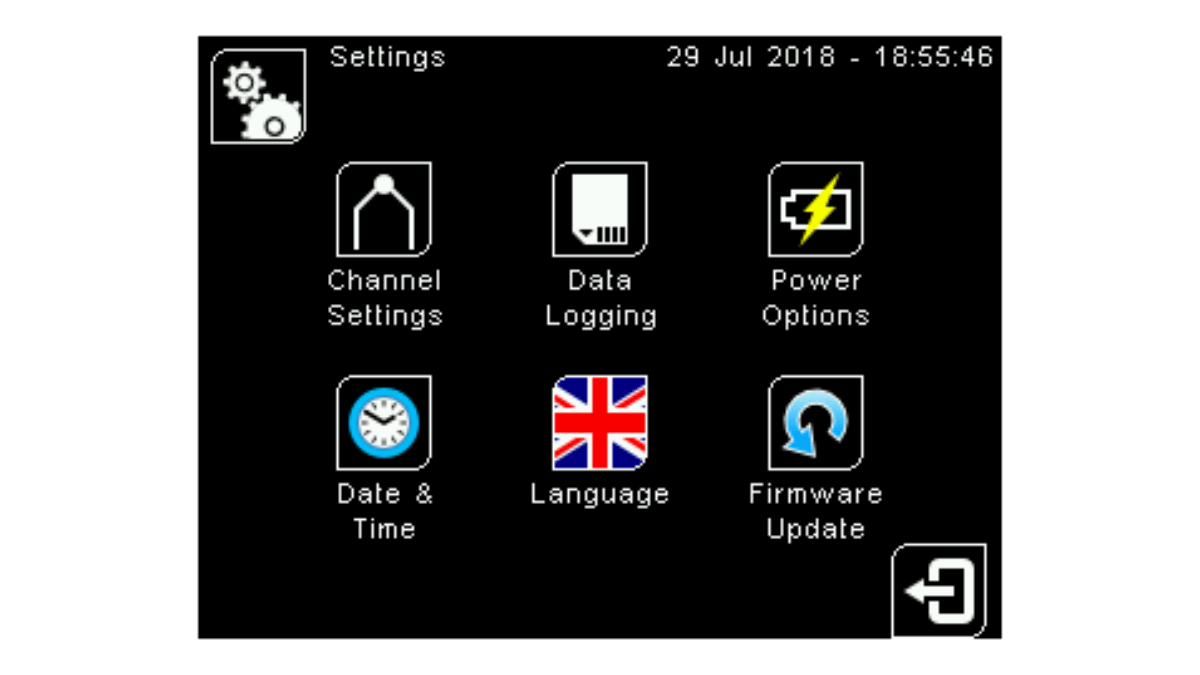

- Fully configurable; no additional hardware is required for configuration
- Each channel is configurable separately for input type, maths, alarms and display options
- Firmware updates via USB
Windows Software Features
- Temperature display of all 6 channels
- Data logging of live temperature data direct to PC
- File format: Comma-separated text file (compatible with Excel)
- Scrolling multi-channel temperature chart
- Configuration of Excelog 6 settings
Download for Windows -
SPECIFICATIONS
Inputs 4 x thermocouple inputs (any of the below types), for use with
miniature thermocouple connectors, plus
2 x RTD inputs, spring clamp, for 2-wire or 3-wire RTDs, 28 to 16 AWGInput Type Temperature Range Accuracy of Excelog only
(whichever is greater)Thermocouples: Type J -200°C to 1200°C ± 0.1% or 0.8°C Type K -200°C to 1372°C ± 0.1% or 0.8°C Type T -200°C to 400°C ± 0.1% or 0.8°C Type R 0°C to 1768°C ± 0.1% or 0.8°C Type S 0°C to 1768°C ± 0.1% or 0.8°C Type N 0°C to 1300°C ± 0.1% or 0.8°C Type E -200°C to 1000°C ± 0.1% or 0.8°C RTD’s Pt100, Pt200, Pt500, Pt1000 -200°C to 850°C ± 1.0% or 1.0°C Temperature Resolution 0.1° for temperatures below 1000° (C or F)
1° for temperatures above 1000° (C or F)Display 2.83” (72 mm) resistive touch TFT, 320 x 240 pixels, backlit Configurable Parameters Temperature units, alarms, signal processing, date and time,
data logging, power options, graph channelsTemperature Units °F or °C Alarm Configuration 12 x visual alarms (2 per channel) with adjustable level,

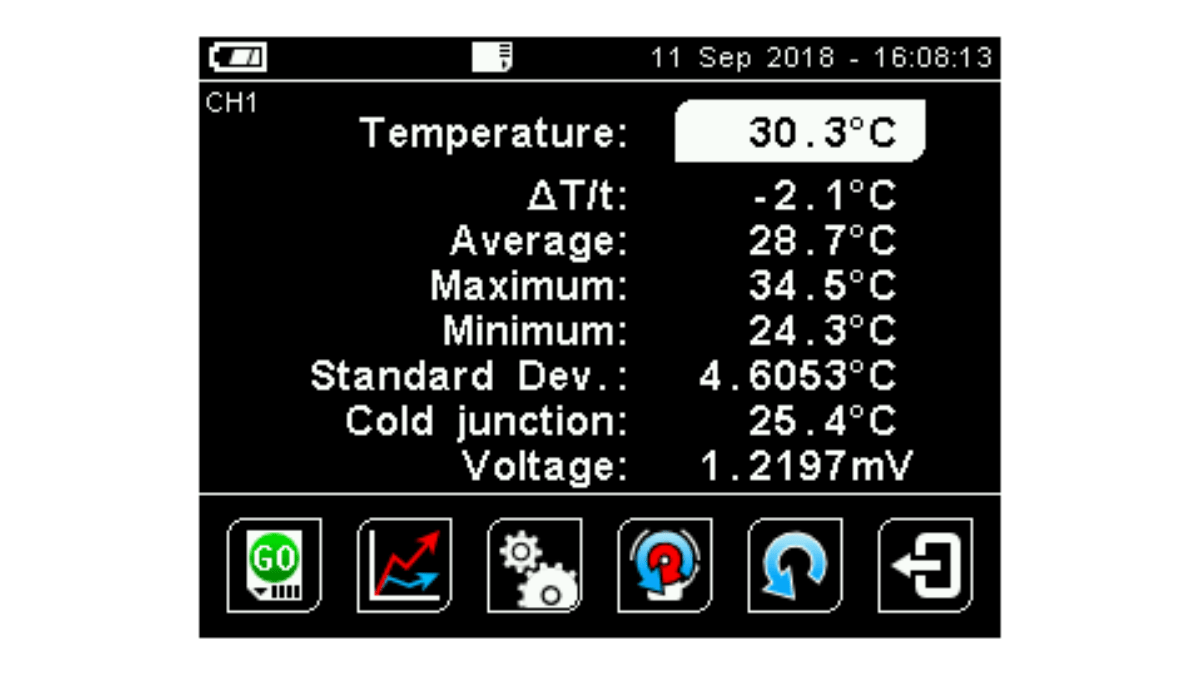

individually configurable as HI or LO.Signal Processing Average, minimum, maximum, standard deviation,
temperature difference between 2 channelDisplay Response Time Temperatures update every 1 s Operating Temperature 0 to 50°C Power Supply Built-in rechargeable Li-ion battery, or USB, or
5 V DC mains adapter (included)Battery Life (Typical) 32 hours while logging with full display brightness
Up to 96 hours while logging in power saving modeCharge Time 6 hours (with supplied mains adapter) Weight 200 g Dimensions 136(w) x 71(h) x 32(d) mm Data Logging Specifications

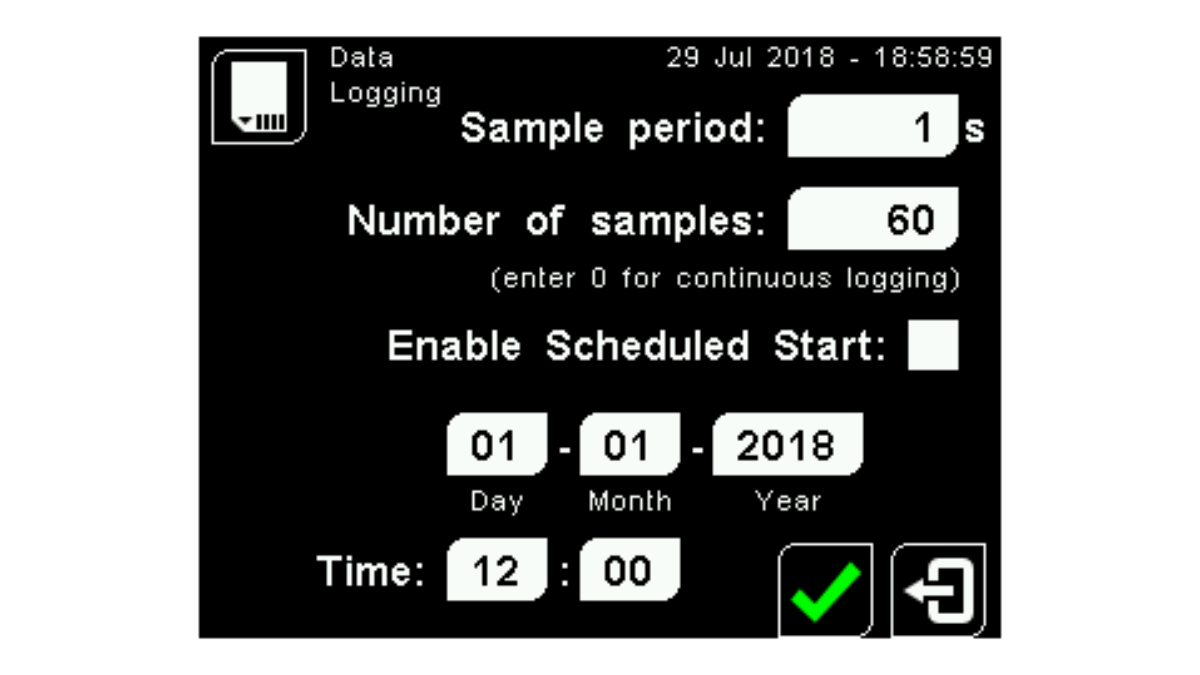

Data Logging Interval 1 to 86,400 seconds (1 day) Max. SD Card Capacity 32 GB SD or SDHC (4 GB SD Card included – approx 2 years of data) Variables Logged Measured temperature, cold junction temperature, alarm events File Format .csv (can be imported to Excel) Configurable Parameters Sample period, number of samples, scheduled start date/time (or
manual start/stop)

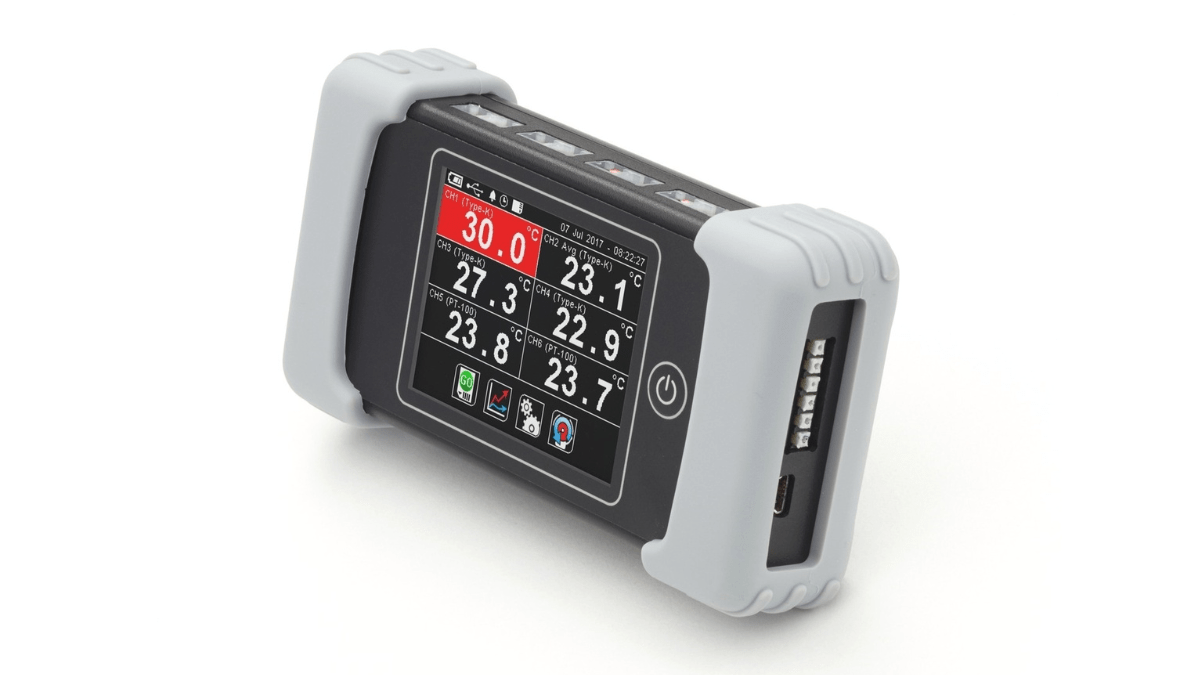

Calex EXCELOG-6 – Handheld Temperature Data Logger
$1,046.10 NZD ex GST
This Handheld Temperature Data Logger with Touch Screen features 4 thermocouple inputs and 2 RTD inputs, allowing simultaneous or individual display and logging of all 6 channels. It supports data logging to SD Card or PC via USB interface, and can be powered by a built-in battery, USB, or mains adapter. The touch screen with backlight and built-in stand enhance usability.
