OVERVIEW
Eliminate guesswork in your processes with the industry’s most reliable data logger
HOBO U12 Stainless Temperature data loggers are ideal for food, pharmaceutical, autoclave, and other applications where high-accuracy temperature data is critical. They can withstand process conditions from pasteurization to flash freezing and washdown.

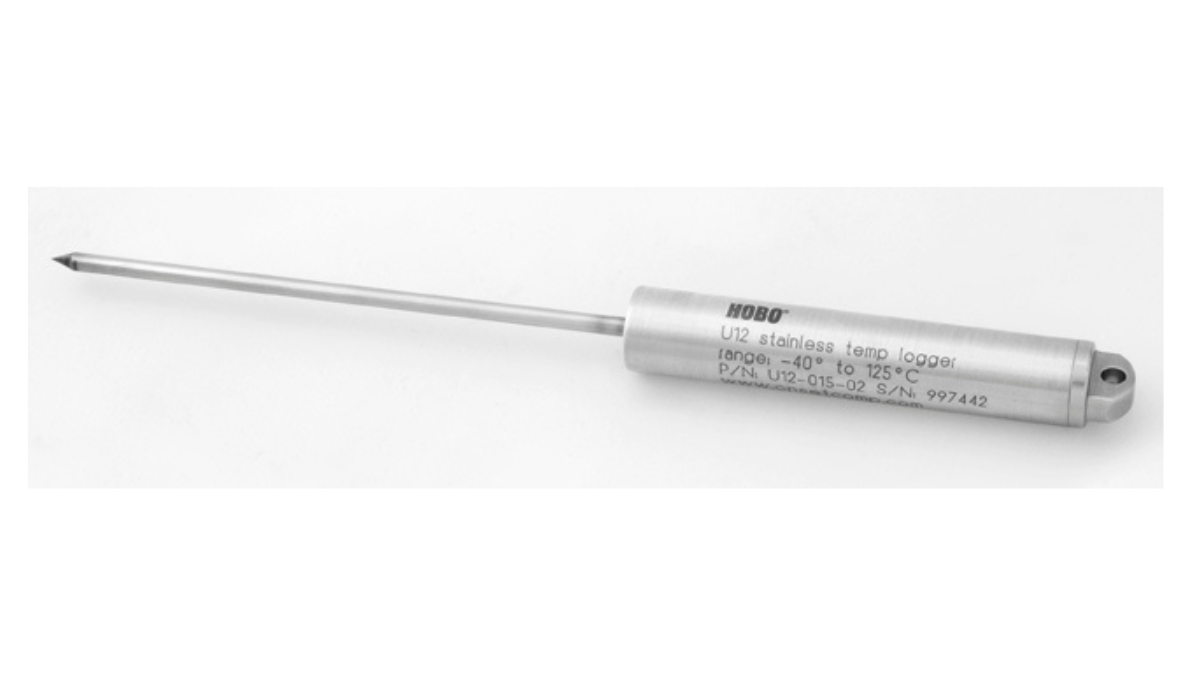

The HOBO U12 Stainless Temperature Data Logger is a single-channel temperature logger with 12-bit resolution that can record up to 43,000 measurements. The logger uses a direct USB interface for launching and data readout by a computer or HOBO shuttle.
Features
- Food-grade 316 Series stainless steel
- High-accuracy, extended temperature range
- Suitable for high pressure applications to 2200psi
- Fast readout via direct USB interface
- Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
Important Information
Requires HOBOware software and a USB cable. (Note: A USB cable is included w/HOBOware Pro CD or USB software purchase).
-
SPECIFICATIONS

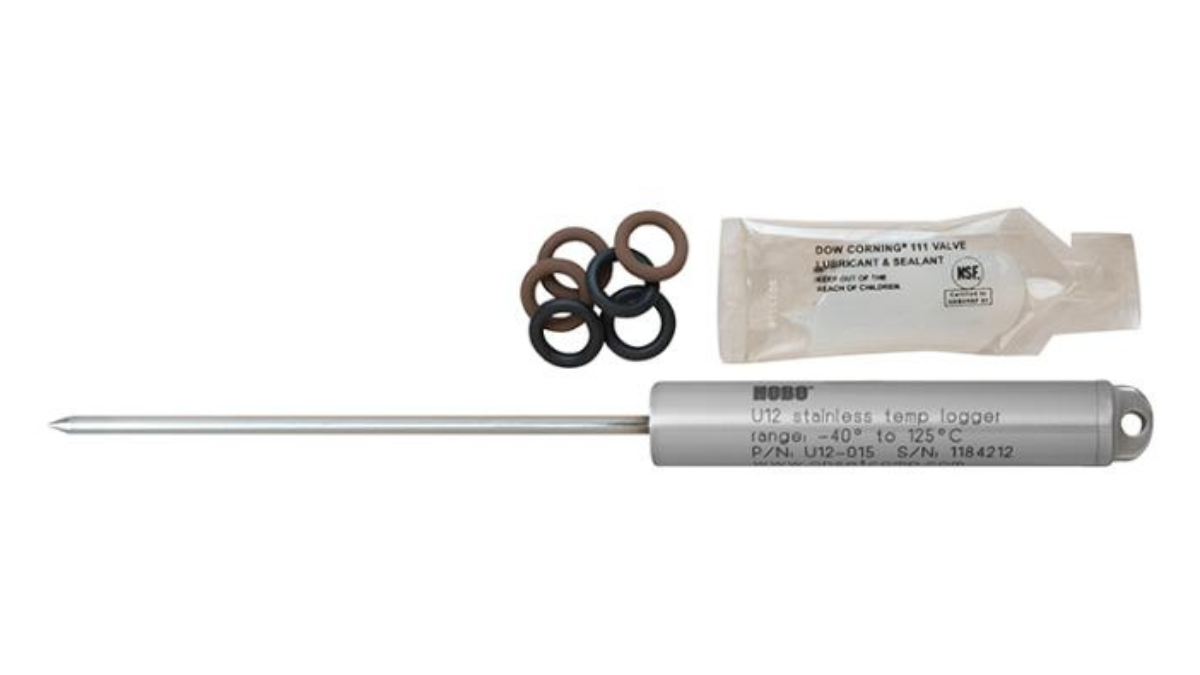

Measurement Range -40° to 125°C (-40° to 257°F) Accuracy ±0.25°C from 0° to 50°C , see manual for plot (±0.45°F from 32° to 122°F , see manual for plot) Resolution 0.03°C at 25°C , see manual for plot (0.05°F at 77°F , see manual for plot) Drift (0.09°F/year + 0.2°F/1000 hrs above 212°F) Response Time in 1m/s (2.2 mph) airflow 2.25 minutes, typical to 90% Response Time in Water 20 seconds, typical to 90% Time Accuracy ±2 minute per month at 25°C (77°F) Operating Environment Air, water, steam, 0 to 100% RH Operating Temperature Logging: -40° to 125°C (-40° to 257°F). Launch/readout: 0° to 50°C (32° to 122°F), per USB specification Battery Life 3 year typical use, factory replaceable Memory 64K bytes (43,000 12-bit measurements) Construction 316 series stainless steel, EPDM or Viton O-ring; see Food-Grade Compliance section for additional details Weight 82 g (2.9 oz) Logger Dimensions 17.5 x 101.6 mm (0.69 x 4.00 inches) Probe Dimensions 4 x 124 mm (0.16 x 4.90 inches) Pressure/Depth Rating 2200 psi maximum (1500 m/4900 ft maximum) NIST Certificate (-22° to 248°F) -
HOBOWARE SOFTWARE
HOBOware Software

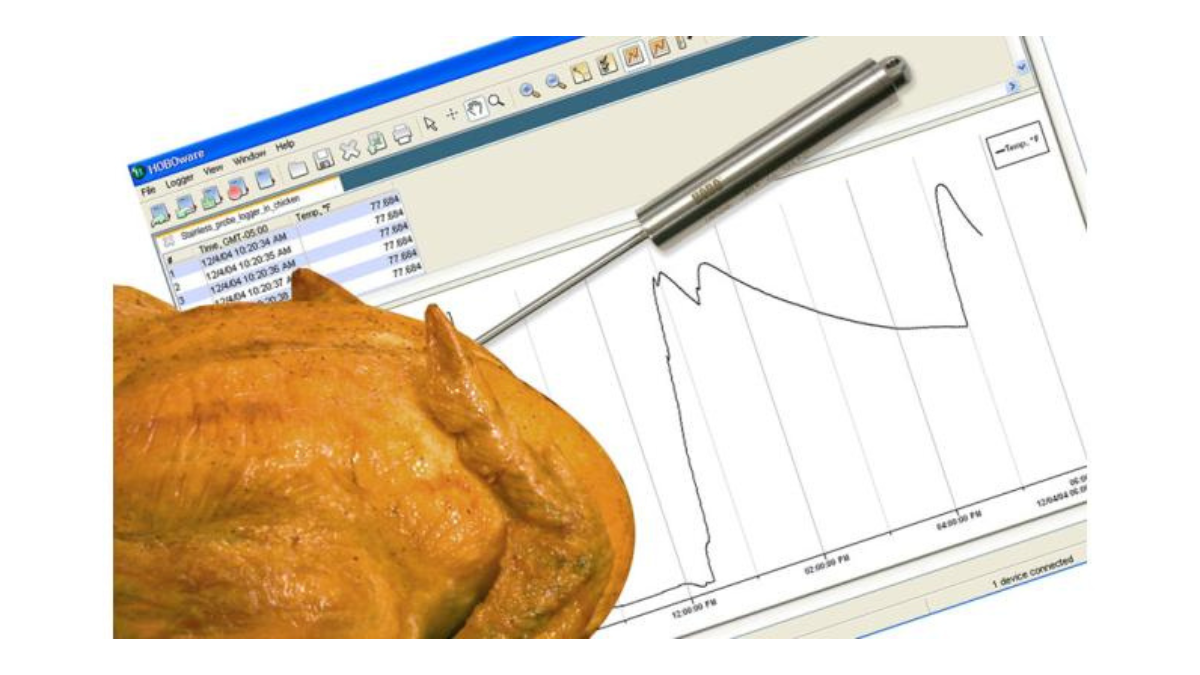

HOBOware software is used for launching, reading out, and plotting data from HOBO® data loggers. With HOBOware, you can also check logger status, filter and export data, save changes to graphs in project files, and scale data with the Linear Scaling and Pulse Scaling data assistants. There are two versions of HOBOware: HOBOware and HOBOware Pro.
Learn more about HOBOware and HOBOware-Pro Features >>
HOBO – 5-Inch Probe Temperature Data Logger
$1,225.40 NZD ex GST
The HOBO U12 Stainless 5-inch Probe Temperature Data Logger is ideal for monitoring internal temperature of foods or any application where fast response is critical.
