Achieve Optimal Curing Temperatures Instantly with This Solution

The Concrete curing temperature data logger kit includes everything you need to start logging the temperature curing process of concrete.

This kit includes

1 x UX120-014M 4 Channel Thermocouple Data Logger
1 x CABLE-USBMB USB Cable from Logger to PC.
1 x HB6412 Logger Box Waterproof data logger enclosure

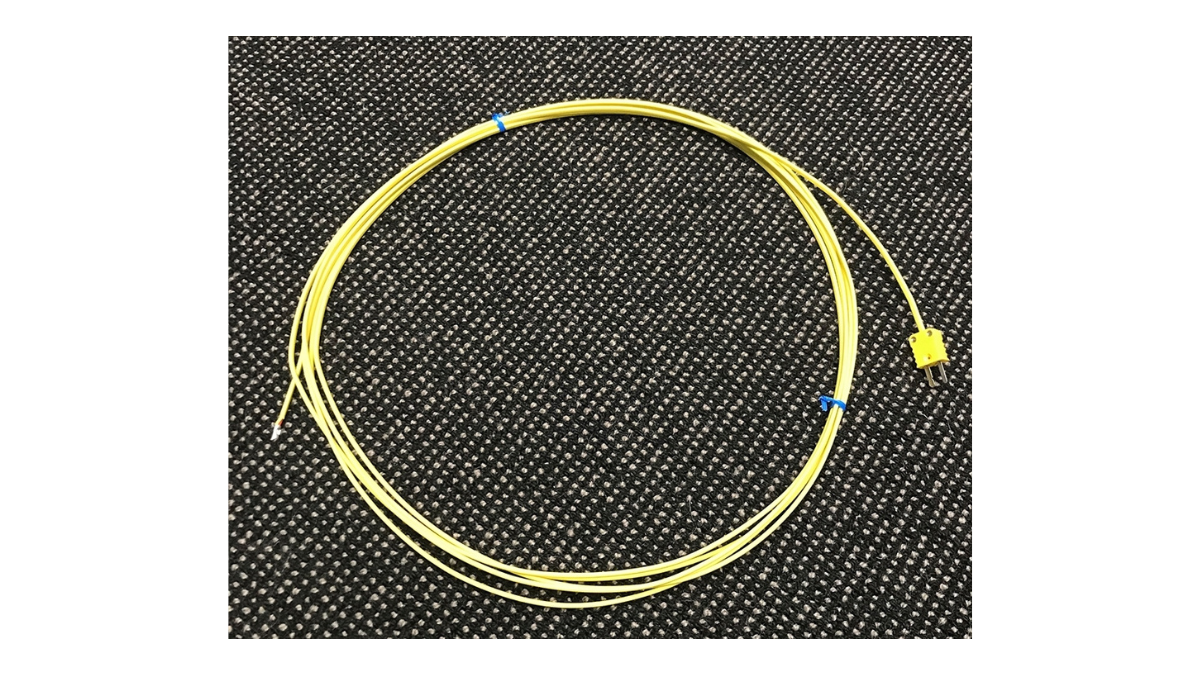

4 x CONCRETE-K-10M, 10m Ready-made Thermocouples complete Miniplugs and 10 extra crimp ferrules so you can cut the used sensor off after the cure and re-use it on the next job.
HOBOware software is a free download from our web site: Here

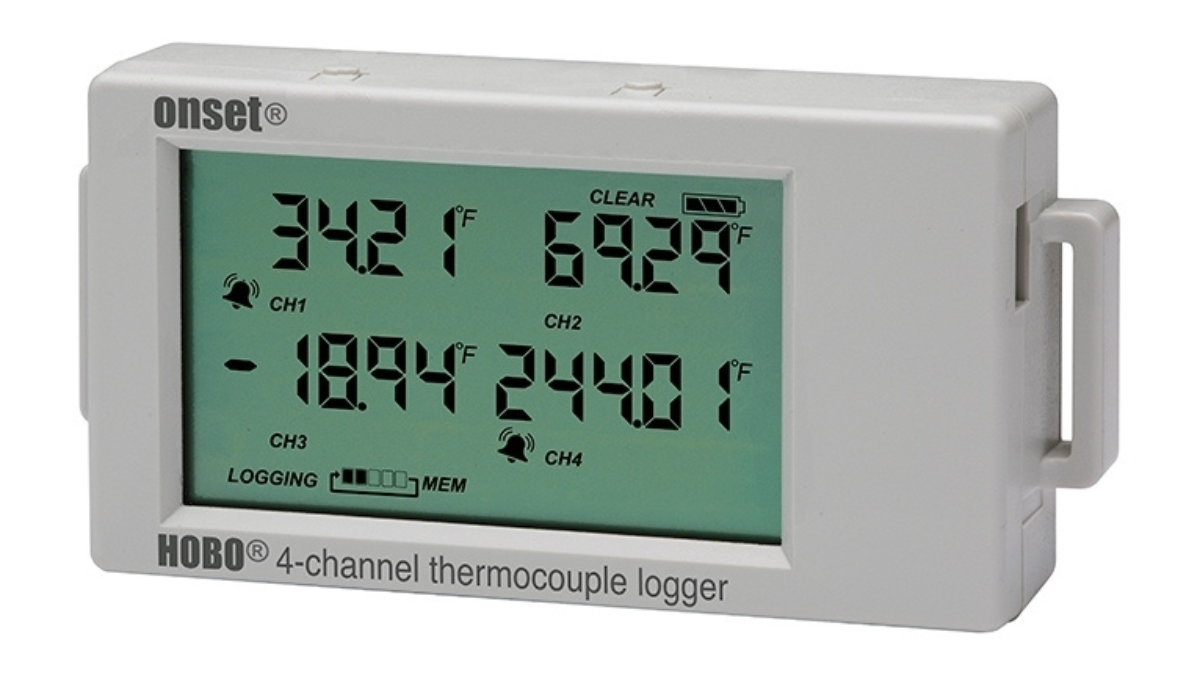

The HOBO UX120 Thermocouple Logger is a four-channel LCD data logger for measuring and recording temperature and accepts 4 type K temperature sensors via a mini plug.

In addition to accepting four thermocouple probes, the logger features an internal temperature sensor for logging ambient temperatures, further extending the range of capabilities.

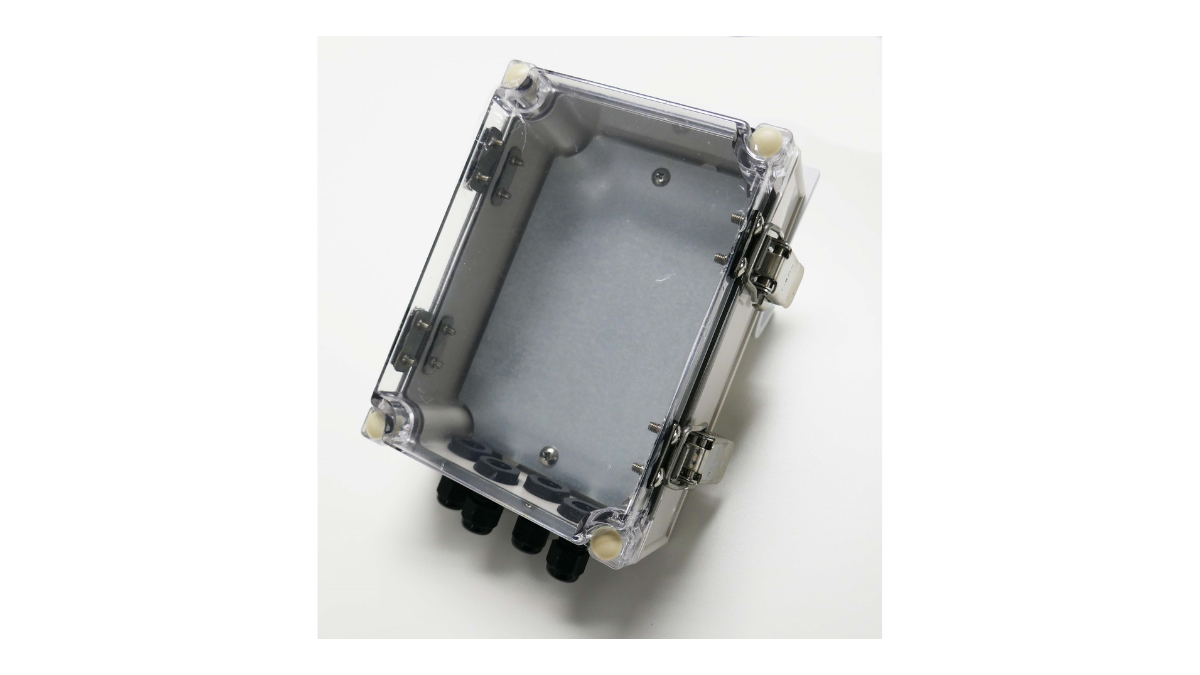

The supplied Enclosure is fitted with 4 x Cable Glands for the thermocouple leads and back hooks for storing long cables, standing the box upright or hooking to framework.
This Enclosure has an IP66 Rating (with all glands sealed) and a Transparent cover to see the data logger display.
175(L) x 125(W) x 75(D)mm

Note: Minor assembly required.
The logger is fixed to the metal backing plate with inbuilt magnets
Thermocouples thread through fitted cable glands and plug into the logger.

Monitoring Concrete Curing Temperatures with Data Loggers

HOBOware Software

HOBOware software is used for launching, reading out, and plotting data from HOBO® data loggers. With HOBOware, you can also check logger status, filter and export data, save changes to graphs in project files, and scale data with the Linear Scaling and Pulse Scaling data assistants. There are two versions of HOBOware: HOBOware and HOBOware Pro.

Learn more about HOBOware and HOBOware-Pro Features >>
