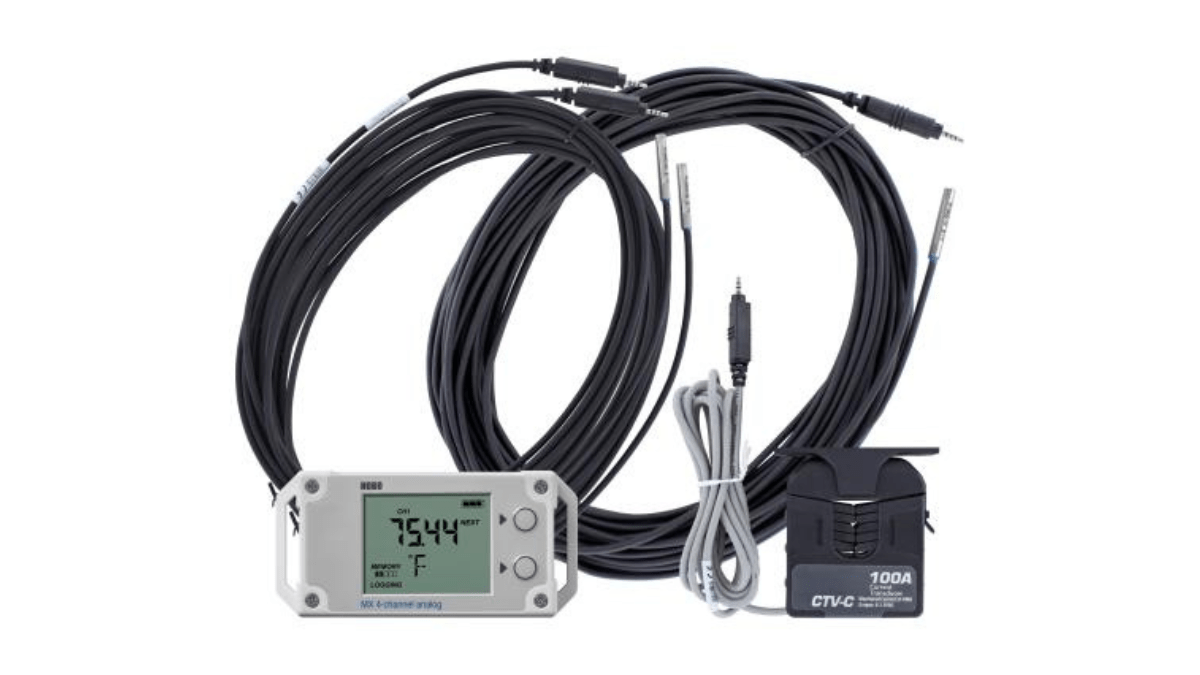

Ideal to analyse the operation of industrial heat pumps and identify opportunities to improve energy efficiency, this set of products includes an Bluetooth data logger, three temperature probes, and one AC current sensor—an easy-to-deploy,  comprehensive monitoring solution to streamline your analysis and assessments.

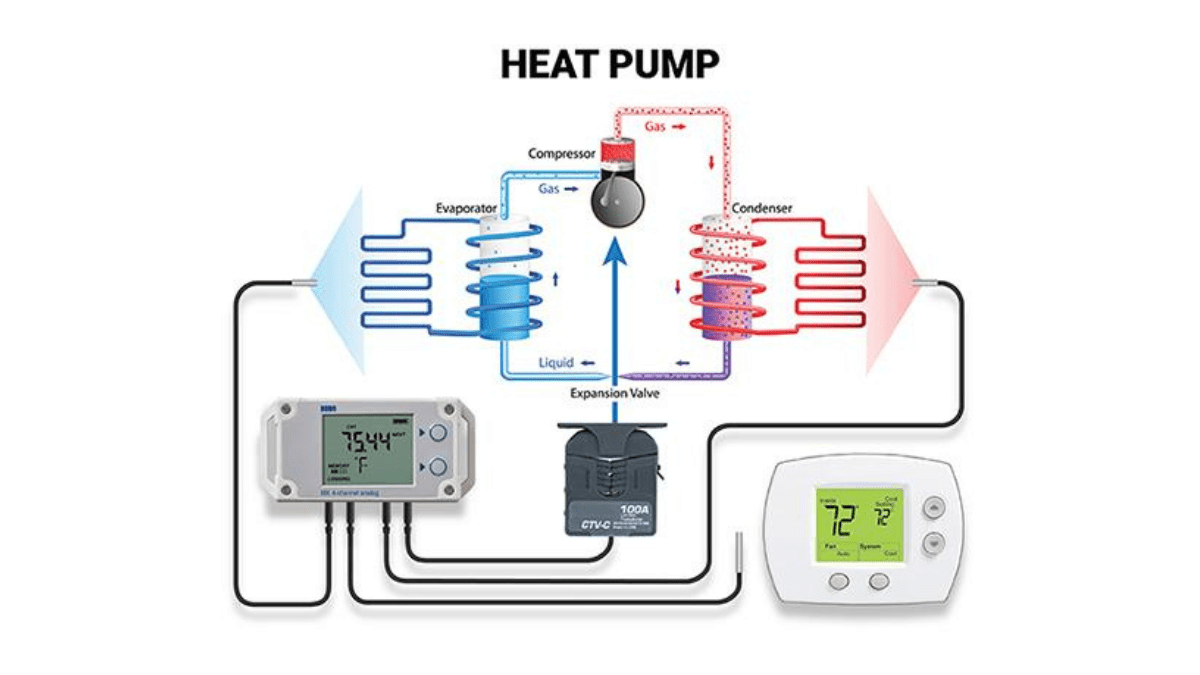

Heat Pump Kit Sensor Configuration:

Channel 1: Temperature sensor probe attached to thermostat to monitor the heat pump’s response to indoor thermal conditions
Channel 2: Temperature probe deployed at heat pump outlet to measure discharge provide data on conditioned air delivery
Channel 3: Temperature probe connected to rear of heat pump unit to asses return air and assess reconditioning performance.
Channel 4: AC Current sensor connected to a split-core current transformer (CT) to monitor the compressor’s electrical load during cooling cycles and correlate system operation to power consumption

Complete Heat Pump Monitoring. No Wiring Required.

Combining these sensors and locations provides a comprehensive profile of the heat pump’s thermal and electrical behavior, facilitating data-driven analysis to optimise performance and reduce energy consumption.

The Bluetooth-enabled wireless data logger delivers convenient access to data using a mobile device or Windows computer using the free HOBOconnect® app. When within a 100-foot range, users can wirelessly configure the logger, download and view data in real-time graphs, check operational status, set alarm notifications, and share data files—all without the need for dedicated equipment beyond a smartphone, tablet, or laptop.

This flexibility streamlines data collection and simplifies field deployment, making it ideal for energy audits, HVAC diagnostics, and long-term system monitoring.
