OVERVIEW
Ensure Accurate Temperature Data with the MX100 Wireless Logger

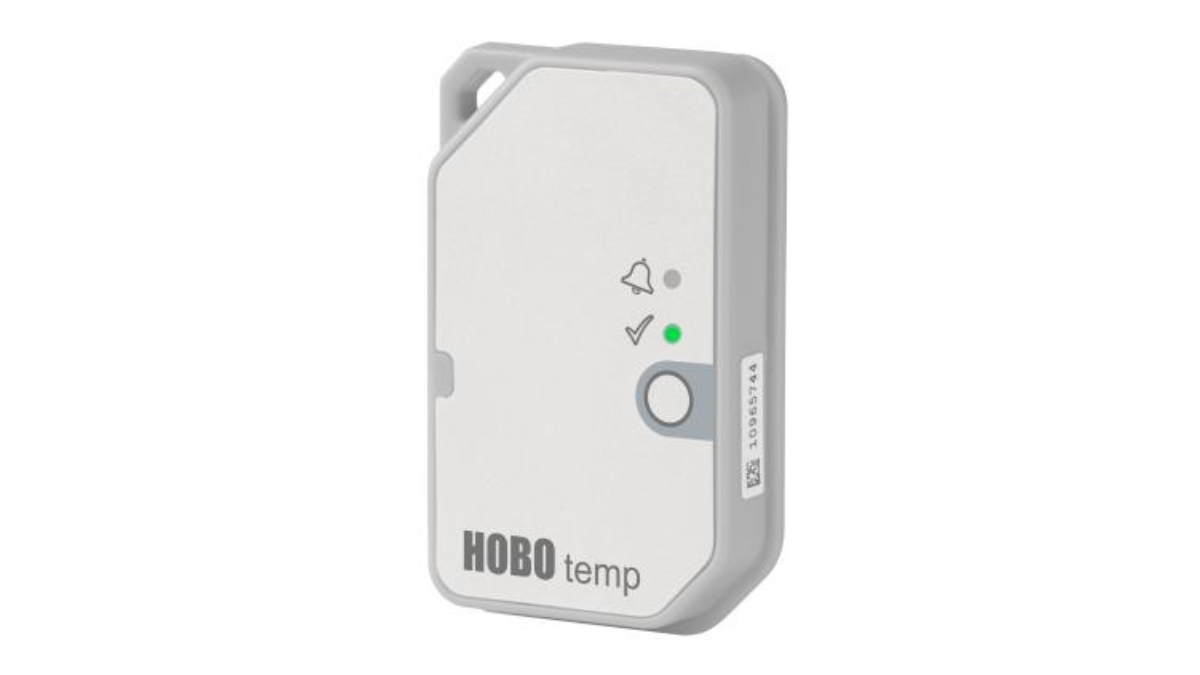

Onset’s HOBO MX100 is a low-cost, splash-proof data logger that measures and transmits temperature data wirelessly to mobile devices via Bluetooth Low Energy (BLE) technology.
Ideal for a range of indoor monitoring applications, this self-contained wireless data logger lets you access temperature data anytime from your mobile device over a 100-foot range. And, it requires no dedicated equipment beyond a mobile device for configuring the logger or reading out data.

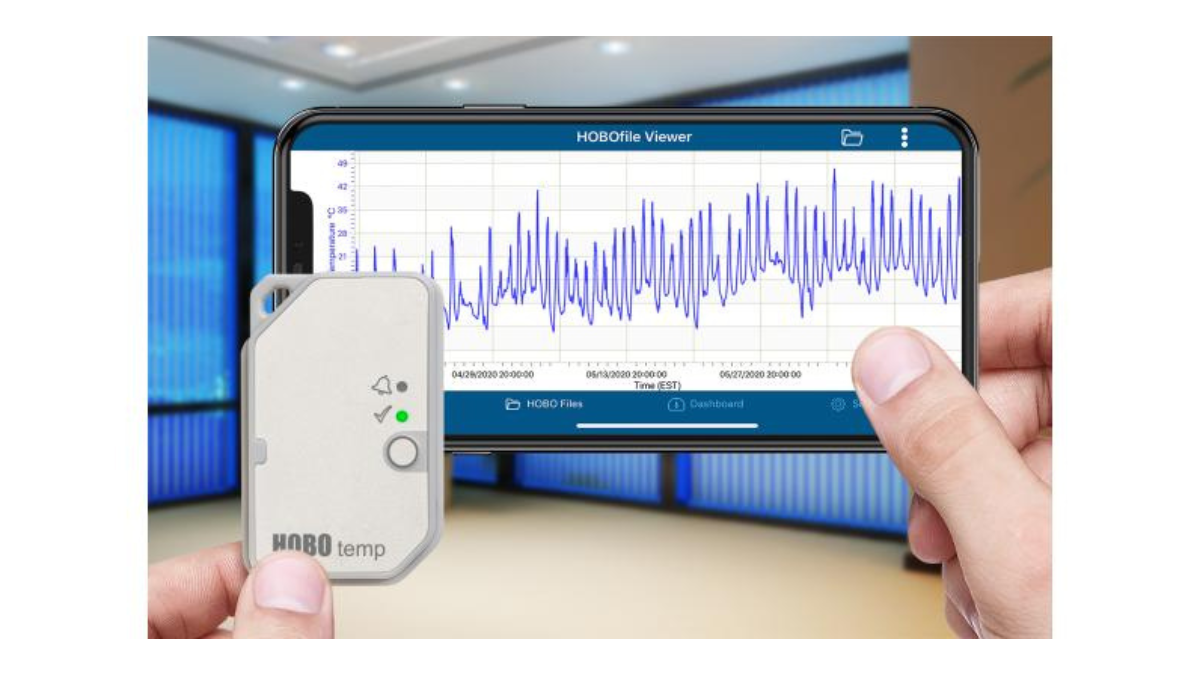

Onset’s free HOBOconnect app for iOS makes it fast and easy to view temperature graphs, check the operational status of MX100 loggers, configure alarm notifications, and share data files.
Highlighted Features
- Set up and offload loggers wirelessly from your mobile device – no internet, cables, or computer required
- Exceptional value for the convenience of a BLE communication logger
- Splash-proof design enables use in damp environments and spray-down applications
- Easy to deploy, offload, and share temperature data using free HOBOmobile app
- Visual alarms on the logger display and mobile app keep you notified of problems
- Set up and start monitoring in minutes!
Important Information: This logger is not supported by the HOBO MX Gateway. This device requires a compatible mobile device or Windows computer running the HOBOconnect app. System requirements for the app can be found at the bottom of the HOBOconnect software page.
-
SPECIFICATIONS
Temperature Sensor
Range -30° to 70°C (-22° to 158°F) Accuracy ±1.0°C from -30° to -5°C (±1.8°F from -22° to 23°F)
±0.5°C from -5° to 50°C (±0.9°F from 23° to 122°F)
±1.0°C from 50° to 70°C (±1.8°F from 122° to 158°F)Resolution 0.04°C (0.072°F) Drift <0.01°C (0.018°F) per year Response time 6 minutes typical to 90% in open air moving 1 m/s, unmounted Logger
Logger operating range -30° to 70°C (-22° to 158°F) Radio power 1 mW (0 dBm) Transmission range Approximately 30.5 m (100 ft) line-of-sight Wireless data standard Bluetooth Low Energy (Bluetooth Smart) Logging rate 1 second to 18 hours Time accuracy ±1 minute per month at 25°C (77°F) Battery CR2450 3V lithium, not replaceable Battery life 1 year, typical with logging interval of 1 minute and Bluetooth Always On
enabled; 2 years, typical with logging interval of 1 minute and Bluetooth
Always On disabled. Faster logging intervals, remaining connected with
the app, excessive downloads, and paging may impact battery life.Memory 30,000 measurements Full memory download time Approximately 30 seconds; may take longer the farther the device is
from the loggerDimensions 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches) Weight 25.5 g (0.90 oz) Environmental rating IP67 CE The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU). -
HOBOCONNECT
Download the free HOBOconnect app for your iOS or Android mobile device or Windows computer today.
Onset’s HOBOconnect app, accessed from a free download from the iTunes or Google Play app store, or your pc, makes it quick and easy to configure compatible MX Series data loggers (chart below) and manage the collected data. From your mobile device, tablet, or Windows computer, users can view data in graphs, check the operational status of loggers, share data files and graph images for analysis in Excel, Numbers, and other applications, and store data in the cloud. HOBOconnect also makes it fast and easy to set up audible alarm notifications so users are immediately notified of problems.
Learn more about HOBOconnect >>
HOBO MX100 – Temperature Bluetooth Data Logger
$139.70 NZD ex GST
Onset’s HOBO MX100 is a low-cost, splash-proof data logger that measures and transmits temperature data wirelessly to mobile devices via Bluetooth Low Energy (BLE) technology.
