OVERVIEW

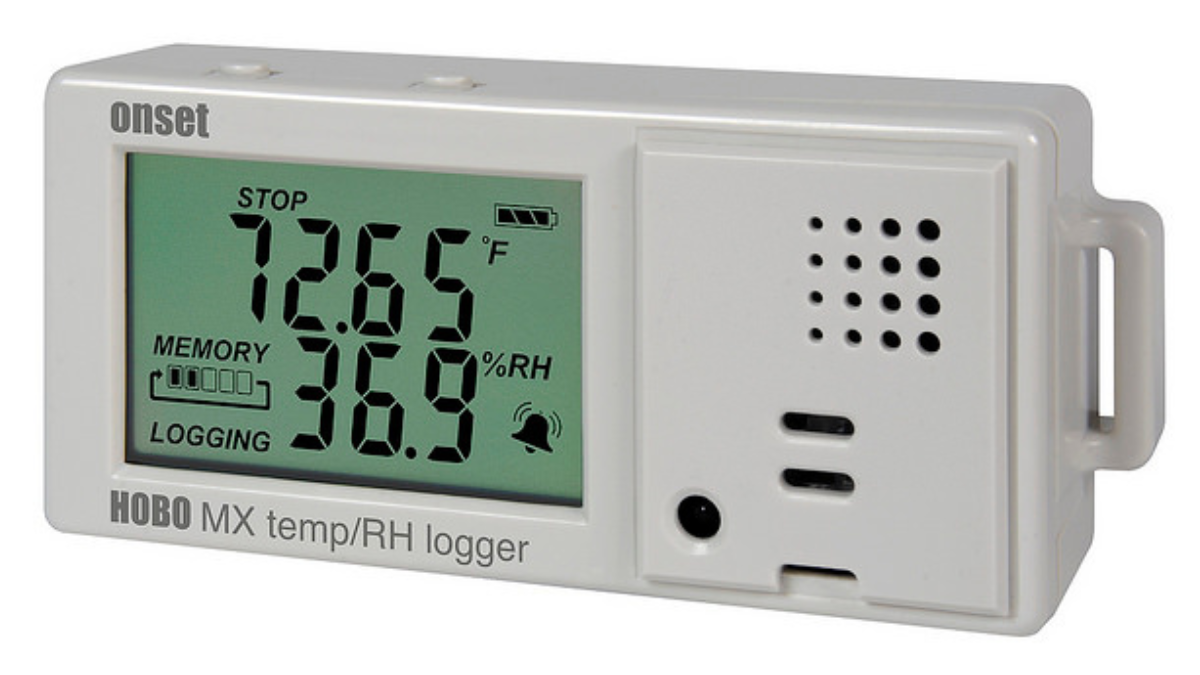

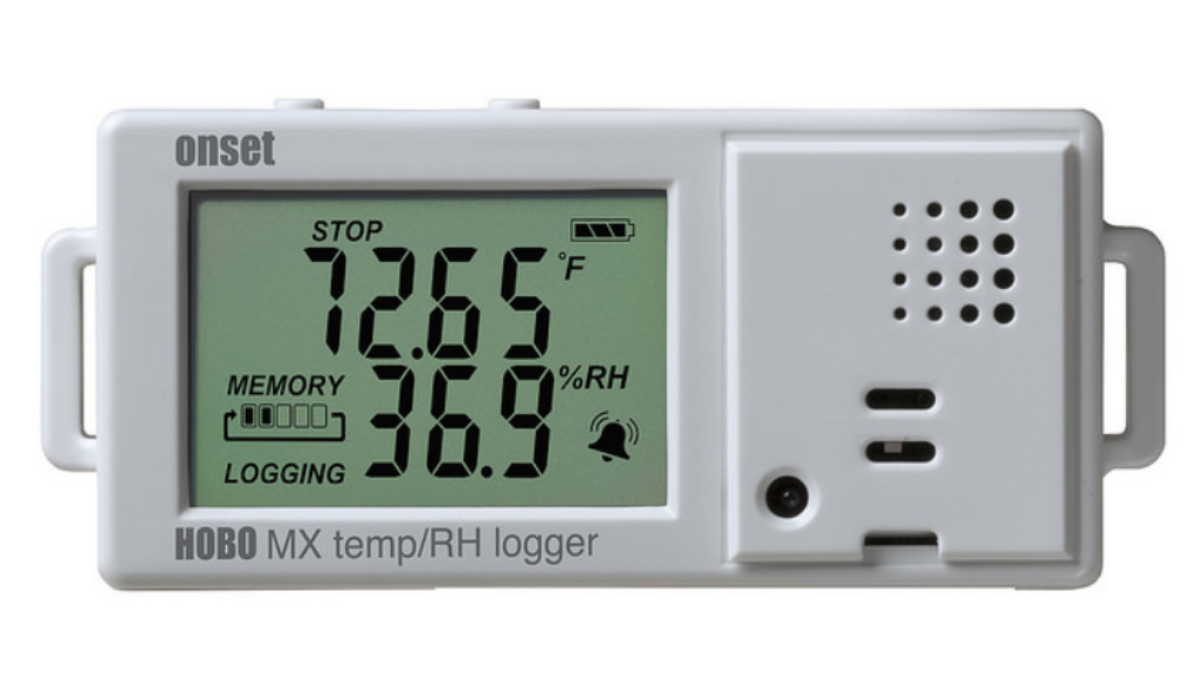

Easily Monitor Temperature and Humidity Data with Onset’s HOBO MX1101
Onset’s HOBO MX1101 data logger measures and transmits temperature and relative humidity data wirelessly to mobile devices or Windows computers via Bluetooth Low Energy (BLE) technology.
This Bluetooth® Low Energy (BLE)- enabled logger is designed for wireless communication with a phone, tablet, or computer. The logger can calculate minimum, maximum, average, and standard deviation statistics and can be configured to trip audible or visual alarms at thresholds you specify. The logger also supports burst logging in which data is logged at a different interval when sensor readings are above or below certain limits. This compact data logger also has a built-in LCD screen to display the current temperature, relative humidity, logging status, battery use, memory consumption, and more.

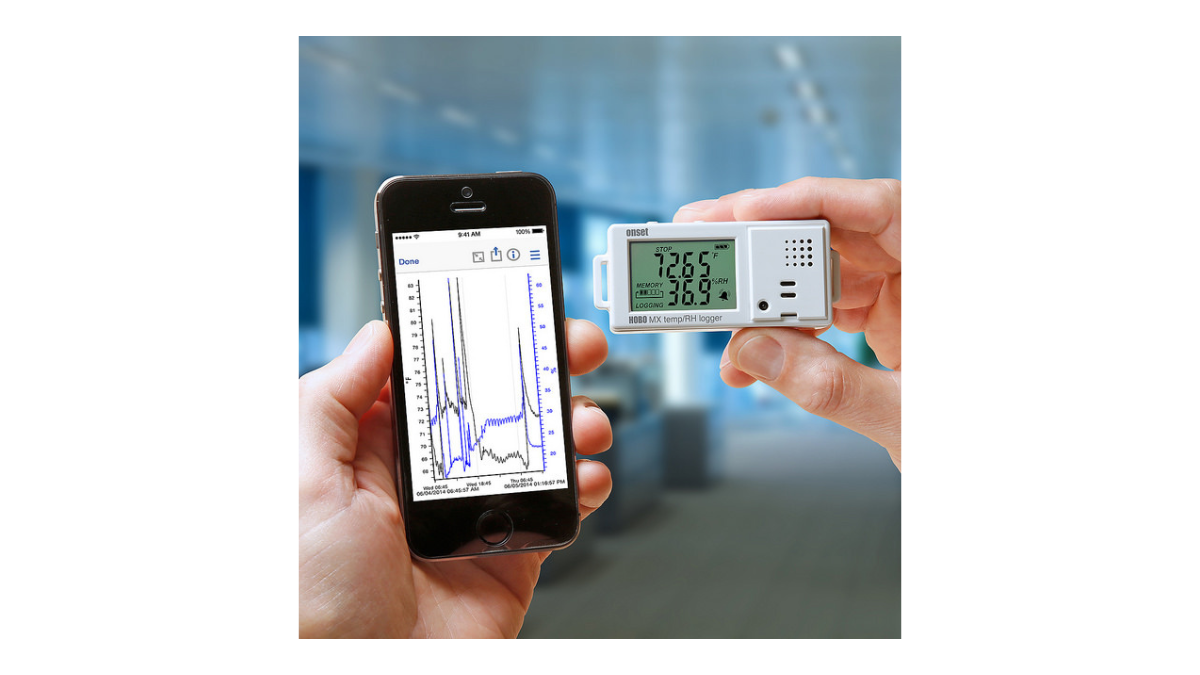

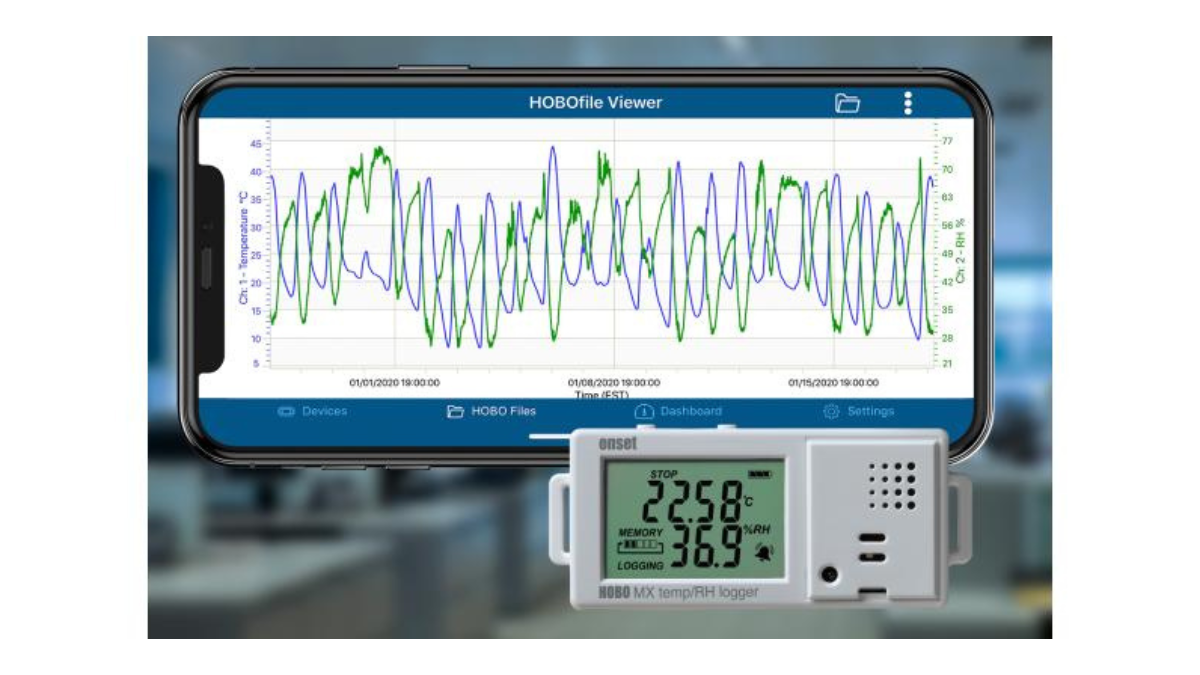

The self-contained wireless data logger works with your mobile device or Windows computer and Onset’s free HOBOconnect app so you can configure the logger and read out data over a 100-foot range, with no other dedicated equipment required. Using Onset’s free app, you can also view data in graphs, check the operational status of loggers, configure alarm notifications, and share data files.
Features
- Wireless communication via Bluetooth Low Energy (BLE) technology
- Easy to deploy and offload using the free HOBOconnect app
- Visual and audible high & low alarm thresholds
- Stores 84,000 measurements
- Accuracy: +/- 0.2C and +/- 2%RH
- Find me/pager feature
- Patented connectivity technology
The HOBO MX1100 data logger requires a compatible mobile device and the HOBOconnect app. System requirements for the app can be found at the bottom of the HOBOconnect software page.
-
SPECIFICATIONS
Temperature Sensor
Range -20° to 70°C (-4° to 158°F) Accuracy ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A in User Manual Resolution 0.024°C at 25°C (0.04°F at 77°F), see Plot A in User Manual Drift <0.1°C (0.18°F) per year RH Sensor*
Range 1% to 90% (non-condensing) Accuracy ±2% from 20% to 80% typical to a maximum of ±4.5% including
hysteresis at 25°C (77°F); below 20% and above 80% ±6% typicalResolution 0.01% Drift <1% per year typical Response Time
Temperature 7:30 minutes in air moving 1 m/s (2.2 mph) RH 20 seconds to 90% in airflow of 1 m/s (2.2 mph) Logger
Radio Power 1 mW (0 dBm) Transmission Range Approximately 30.5 m (100 ft) line-of-sight Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart) Logger Operating Range -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing) Logging Range 1 second to 18 hours Logging Modes Fixed interval (normal, statistics) or burst Memory Modes Overwrite when full or stop when full Start Modes Immediate, push button, date and time, or next interval Stop Modes When memory is full, push button, date and time, or after a set
logging periodRestart Mode Push button Time Accuracy ±1 minute per month at 25°C (77°F), see Plot B in User Manual Battery Life 1 year, typical with logging interval of 1 minute. Faster logging and/or
statistics sampling intervals, entering burst logging mode, and
remaining connected with the app affects battery life. Excessive
readouts, audible alarms, and paging all affect battery life. Visual
alarms and other events can have a marginal effect on battery life.Battery Type Two AAA 1.5 V alkaline batteries, user replaceable Memory 128 KB (84,650 measurements, maximum) Full Memory Download Data Approximately 60 seconds; may take longer the further the device is
from the loggerLCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this rangeSize 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.) Weight 56 g (1.98 oz) Environment Rating IP50 CE The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).*Per RH sensor manufacturer data sheet
-
HOBOCONNECT
Download the free HOBOconnect app for your iOS or Android mobile device or Windows computer today.
Onset’s HOBOconnect app, accessed from a free download from the iTunes or Google Play app store, or your pc, makes it quick and easy to configure compatible MX Series data loggers (chart below) and manage the collected data. From your mobile device, tablet, or Windows computer, users can view data in graphs, check the operational status of loggers, share data files and graph images for analysis in Excel, Numbers, and other applications, and store data in the cloud. HOBOconnect also makes it fast and easy to set up audible alarm notifications so users are immediately notified of problems.
Learn more about HOBOconnect >>
HOBO MX1101 – Temp/RH Bluetooth Data Logger
$375.10 NZD ex GST
Onset’s HOBO MX1101 data logger measures and transmits temperature and relative humidity data wirelessly to mobile devices via Bluetooth Smart technology.
Need Remote Access?
Add the MX Gateway for remote access to your data in the LI-COR cloud IoT Platform (formerly HOBOlink).
