OVERVIEW

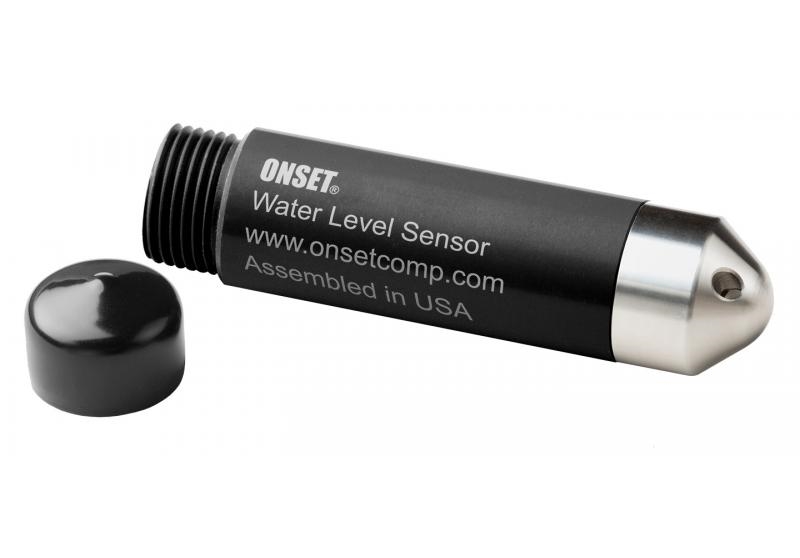

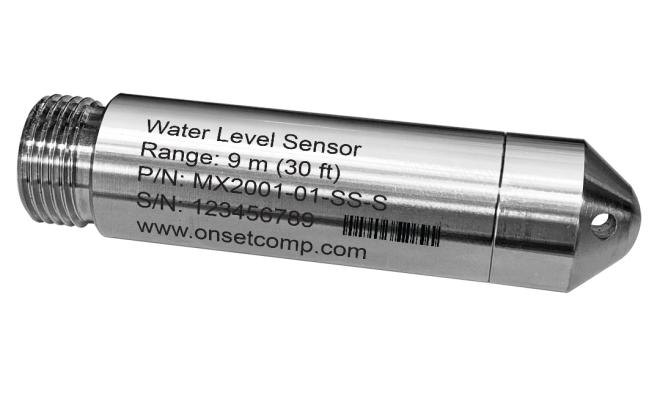

Durable and Reliable – The Titanium or Stainless Steel MX2001 Sensor

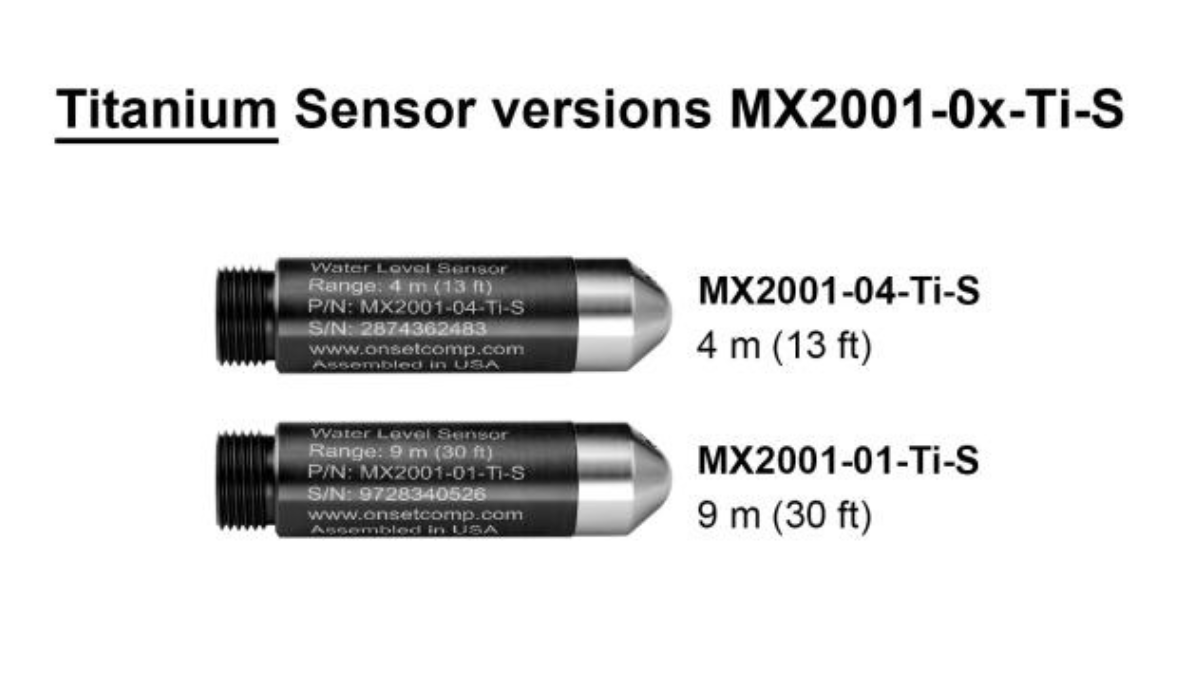

The MX2001 Water Level Sensor is used with the HOBO Bluetooth Water Level Data Logger (MX2001), the HOBO MicroRX Water Level Stations (RX2103 and RX2104), or the HOBO RX3000 Remote Monitoring Station for accurate water pressure, temperature, and water level measurements. These sensors are available in four depth ranges, in stainless steel or titanium (recommended for use in saltwater).
Features
- Non-vented design reduces maintenance
- Durable, ceramic sensor
- 3-point NIST-traceable calibration certificate
-
SPECIFICATIONS
Pressure (Absolute) and Water Level Measurements MX2001-01-SS-S and MX2001-01-Ti-S
Operation Range 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude Factory Calibrated Range 69 to 207 kPa (10 to 30 psia), 0 to 40C (32 to 104F) Burst Pressure 310 kPa (45 psia) or 18 m (60 ft) depth Water Level Accuracy* Typical error: 0.05% FS, 0.5 cm (0.015 ft) water
Maximum error: 0.1% FS, 1.0 cm (0.03 ft) waterRaw Pressure Accuracy** 0.3% FS, 0.62 kPa (0.09 psi) maximum error Resolution <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water
Pressure Response Time (90)%*** <1 second at a stable temperature
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length Weight Stainless sensor (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water
Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh waterWetted Materials Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap
Titanium sensor (MX2001-0x-Ti-S): Acetal housing, PVC end cap; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap
Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacketEnvironmental Rating IP68 Pressure (Absolute) and Water Level Measurements MX2001-02-SS-S
Operation Range 0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude Factory Calibrated Range 69 to 400 kPa (10 to 58 psia), 0 to 40C (32 to 104F) Burst Pressure 500 kPa (72.5 psia) or 40.8 m (134 ft) depth Water Level Accuracy* Typical error: 0.05% FS, 1.5 cm (0.05 ft) water
Maximum error: 0.1% FS, 3.0 cm (0.1 ft) waterRaw Pressure Accuracy** 0.3% FS, 1.20 kPa (0.17 psi) maximum error Resolution <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
Pressure Response Time (90%)*** <1 second at a stable temperature
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length Weight Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water Wetted Materials Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap
Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacketEnvironmental Rating IP68 Pressure (Absolute) and Water Level Measurements MX2001-03-SS-S
Operation Range 0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude Factory Calibrated Range 69 to 850 kPa (10 to 123.3 psia), 0 to 40C (32 to 104F) Burst Pressure 1,200 kPa (174 psia) or 112 m (368 ft) depth Water Level Accuracy* Typical error: 0.05% FS, 3.8 cm (0.125 ft) water
Maximum error: 0.1% FS, 7.6 cm (0.25 ft) waterRaw Pressure Accuracy** 0.3% FS, 2.55 kPa (0.37 psi) maximum error Resolution <0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water
Pressure Response Time (90%)*** <1 second at a stable temperature
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length Weight Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water Wetted Materials Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap
Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacketEnvironmental Rating IP68 Pressure (Absolute) and Water Level Measurements MX2001-04-SS-S and MX2001-04-Ti-S
Operation Range 0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude Factory Calibrated Range 69 to 145 kPa (10 to 21 psia), 0 to 40C (32 to 104F) Burst Pressure 310 kPa (45 psia) or 18 m (60 ft) depth Water Level Accuracy* Typical error: 0.075% FS, 0.3 cm (0.01 ft) water
Maximum error: 0.15% FS, 0.6 cm (0.02 ft) waterRaw Pressure Accuracy** 0.3% FS, 0.43 kPa (0.063 psi) maximum error Resolution <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
Pressure Response Time (90%)*** <1 second at a stable temperature
Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length Weight Stainless sensor (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water
Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh waterWetted Materials Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap
Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap
Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacketEnvironmental Rating IP68 Temperature (Water Level Sensors MX2001-0x-SS-S and MX2001-0x-Ti-S)
Operation Range -20 to 50C (-4 to 122F) Accuracy 0.44C from 0 to 50C (0.79F from 32 to 122F), see Plot A Resolution 0.1C at 25C (0.18F at 77F), see Plot A Response Time (90%) 5 minutes in water (typical) Stability (Drift) 0.1C (0.18F) per year Dimensions 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length Weight Stainless sensor (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water
Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh waterWetted Materials Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap
Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap
Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacketEnvironmental Rating IP68 * Water Level Accuracy: With accurate reference water level measurement, known water density, and a stable temperature environment. System Water Level Accuracy equals the sum of the Barometric Water Level Accuracy plus the selected sensor Water Level Accuracy.
** Raw Pressure Accuracy: Absolute pressure sensor accuracy includes all sensor drift, temperature, and hysteresis-induced errors.
*** Changes in Temperature: Allow 20 minutes in water to achieve full temperature compensation of the pressure sensor. There can be up to 0.5% of additional error due to rapid temperature changes. Measurement accuracy also depends on temperature response time.
HOBO MX2001-S – Water Level Sensor
$1,072.50 NZD ex GST
New Zealand dollar ($) - NZD
The MX2001 Water Level Sensor is used with the HOBO Bluetooth Water Level Data Logger (MX2001), the HOBO MicroRX Water Level Stations (RX2103 and RX2104), or the HOBO RX3000 Remote Monitoring Station for accurate water pressure, temperature, and water level measurements.
