OVERVIEW
Unlock Precise Measurements with Self-Describing Technology
For use with HOBO MX1104 and MX1105 multi-channel data loggers, this air/water/soil temperature sensor offers integrated strain relief, so the probe is secured to the logger. It also features Self-Describing technology to automatically communicate configuration information to the logger, without any programming or extensive user setup.
Features
- Self-Describing technology for quick, easy setup

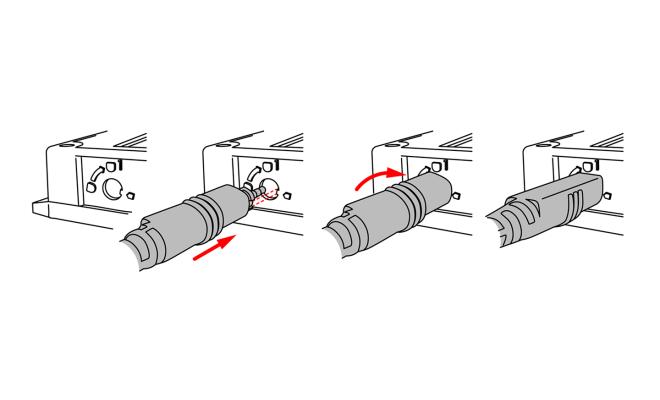

- Locking jack to ensure sensor is connected and stays connected
- Measurement range of -40° and 100°C (-40° to 212°F)
- Accuracy of ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F)

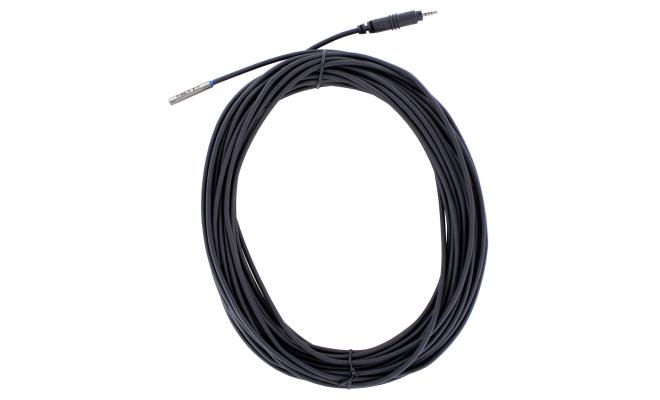

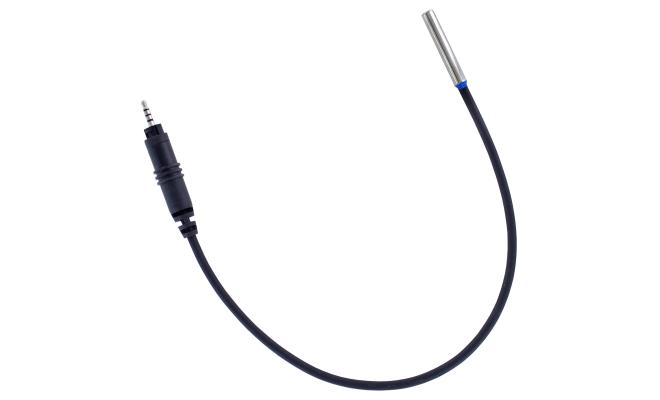

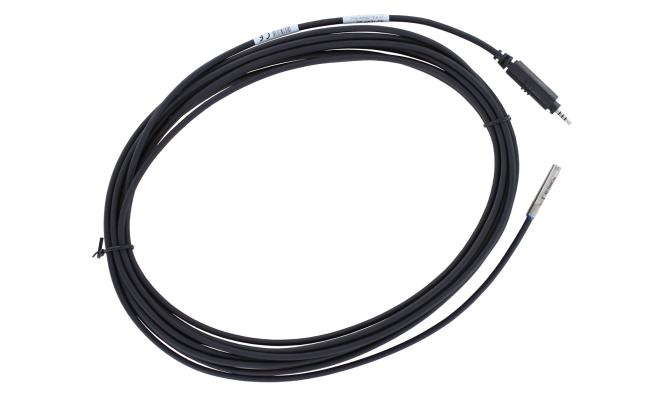

- Available in lengths of 0.3 m (1 ft), 1.8 m (6 ft), 6.1 m, (20 ft) & 15.2 m (50 ft)
-
SPECIFICATIONS
Measurement Range -40° to 50°C (-40° to 122°F) in water; -40° to 100°C (-40° to 212°F) in air Accuracy ±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; see Plot A in User Manual Resolution 0.002° at 25°C (0.003° at 77°F) Drift <0.1°C (<0.2°F) per year Response Time in Air 2 minutes typical to 90% in air moving 1 m/s (2.2 mph) Response Time in Stirred Water 30 seconds typical to 90% Operating Range Sensor tip and cable immersion in fresh water up to 50°C (122°F) for 1 year Probe Housing Copper-plated sensor tip Probe Dimensions 5.1 x 33 mm (0.2 x 1.3 inches) Cable Length SD-TEMP-01: 0.3 m (1 ft)
SD-TEMP-06: 1.8 m (6 ft)
SD-TEMP-20: 5.1 m (20 ft)
SD-TEMP-50: 15.2 m (50 ft)
HOBO Self-Describing Air/Water/Soil Temperature Sensor
$111.10 – $201.30 NZD ex GST
New Zealand dollar ($) - NZD
For use with HOBO MX1104 and MX1105 Multi-Channel Data Loggers, this air/water/soil temperature sensor offers integrated strain relief, so the probe is secured to the logger.
