OVERVIEW
Monitor temperatures like a pro with our single-channel thermocouple data logger
A single-channel thermocouple data logger to measure and record temperature in indoor environments. Designed for a broad range of monitoring applications – from industrial process monitoring to concrete maturity testing – this logger provides exceptional flexibility by accepting J, K, T, E, R, S, B or N type thermocouple probes (sold separately). The logger also has an internal 10K thermistor for cold-junction compensation of the thermocouple output. The thermocouple channel has a 20-bit resolution while the internal 10K thermistor has 12-bit resolution. Using HOBOware®, you can easily configure the logger alarm to trip for specific high or low temperatures. Or, you can set up burst logging in which the logger records data at a different interval during certain conditions. The logger can also calculate minimum, maximum, average, and standard deviation statistics. This compact data logger has a built-in LCD screen to monitor temperature, logging status, battery use, and memory consumption in between readouts.
Onset also offers a four-channel thermocouple data logger, the HOBO UX120-014M.
Features
- High-accuracy J, K, T, E, R, S, B, N thermocouple readings
- Easy-to-view LCD display
- Large memory capacity
- Visual high & low alarm thresholds
- Burst and Statistics logging modes
- Record ambient temperature with internal thermistor
Important Information
External sensors sold separately. Requires HOBOware software and a USB cable. (Note: A USB-A to USB-B mini cable is included w/HOBOware Pro CD or USB software purchase). See Related Products below.
-
SPECIFICATIONS
Thermocouple
Type Range Accuracy Resolution J -210° to 760°C
(-346° to 1,400°F)±0.6°C (±1.08°F) ± thermocouple
probe accuracy0.03°C (0.06°F) K -260° to 1,370°C
(-436° to 2,498°F)±0.7°C (±1.26°F) ± thermocouple
probe accuracy0.04°C (0.07°F) T -260° to 400°C
(-436° to 752°F)±0.6°C (±1.08°F) ± thermocouple
probe accuracy0.02°C (0.03°F) E -260° to 950°C
(-436° to 1,742°F)±0.6°C (±1.08°F) ± thermocouple
probe accuracy0.03°C at (0.05°F) R -50° to 1,550°C
(-58° to 2,822°F)±2.2°C (±3.96°F) ± thermocouple
probe accuracy0.08°C (0.15°F) S -50° to 1,720°C
(-58° to 3,128°F)±2.2°C (±3.96°F) ± thermocouple
probe accuracy0.08°C (0.15°F) B 550° to 1,820°C
(1,022° to 3,308°F)±2.5°C (±4.5°F) ± thermocouple
probe accuracy0.1°C (0.18F) N -260° to 1,300°C
(-436° to 2,372°F)±1.0°C (±1.8°F) ± thermocouple
probe accuracy0.06°C (0.11°F) Internal 10K Thermistor (Temperature)
Range -20° to 70°C (-4° to 158°F) Accuracy ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A in User Manual Resolution 0.024°C at 25°C (0.04°F at 77°F); see Plot A in User Manual Drift <0.1°C (0.18°F) per year Logger
Logger Operating Range Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing);
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specificationLogging Rate 1 second to 18 hours, 12 minutes, 15 seconds Logging Modes Fixed interval (normal), burst, or statistics Memory Modes Wrap when full or stop when full Start Modes Immediate, push button, date & time, or next interval Stop Modes When memory full, push button, or date & time Restart Mode Push button Time Accuracy ±1 minute per month at 25°C (77°F), see Plot B in User Manual Power Source One 3V CR2032 lithium battery and USB cable Battery Life 1 year, typical with logging rate of 1 minute and sampling interval of
15 seconds or greaterMemory 512 KB (208,076 measurements, maximum) Download Type USB 2.0 interface Full Memory Download Time 1 minute, 30 seconds LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this rangeSize 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.) Weight 30 g (1.06 oz) Environmental Rating IP50 CE The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU). -
SOFTWARE
HOBOware Software
HOBOware software is used for launching, reading out, and plotting data from HOBO® data loggers. With HOBOware, you can also check logger status, filter and export data, save changes to graphs in project files, and scale data with the Linear Scaling and Pulse Scaling data assistants. There are two versions of HOBOware: HOBOware and HOBOware Pro.
Learn more about HOBOware and HOBOware-Pro Features >>

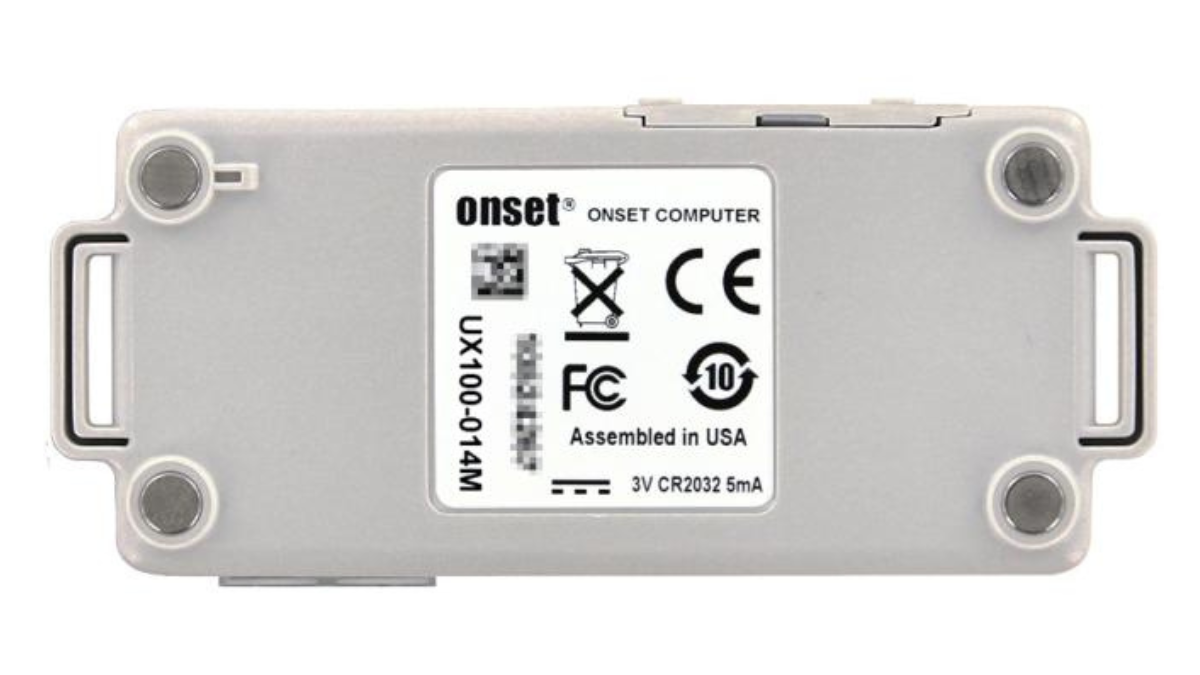

HOBO UX100 – Type J, K, T, E, R, S, B, N Thermocouple Data Logger
$422.40 NZD ex GST
The HOBO UX100-014M Single Channel Thermocouple data logger records temperature in indoor environments with thermocouple sensors
