OVERVIEW
Measure temperatures from -260 to 1820⁰ C
A four-channel thermocouple LCD display data logger to measure and record temperature in a broad range of monitoring applications. Records temperatures from -260 to 1820⁰ C and accepts up to four J, K, T, E, R, S, B, or N type probes. This logger also features an internal temperature sensor for logging ambient temperatures, further extending the range of application possibilities.
Onset also offers a single-channel thermocouple data logger, the HOBO UX100–014M.
Features
- Easy-to-view LCD display confirms logger operation and battery status
- Near real-time readout of current temperatures, as well as minimum, maximum, average, and standard deviation statistics
- On-screen alarms notify you if temperatures exceed high or low thresholds
- Large memory capacity capable of storing 1.6 million measurements
- Start, stop, and restart pushbuttons
- User-upgradeable firmware
- Optional protective case enables logger use in outdoor environments
- Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
Supported Measurements
- AC Current
- AC Voltage
- Amps
- Kilowatt Hours
- Power Factor
- Volt-Amps
- Volts
- Watt Hours
- Watts
Important Information
External sensors sold separately. Requires HOBOware software and a USB cable. (Note: A USB-A to USB-B mini cable is included w/HOBOware Pro CD or USB software purchase). See Related Products below.
-
SPECIFICATIONS
Thermocouple
Type Range Accuracy Resolution J -210° to 760°C
(-346° to 1,400°F)±0.6°C (±1.08°F) ± thermocouple
probe accuracy0.03°C (0.06°F) K -260° to 1,370°C
(-436° to 2,498°F)±0.7°C (±1.26°F) ± thermocouple
probe accuracy0.04°C (0.07°F) T -260° to 400°C
(-436° to 752°F)±0.6°C (±1.08°F) ± thermocouple
probe accuracy0.02°C (0.03°F) E -260° to 950°C
(-436° to 1,742°F)±0.6°C (±1.08°F) ± thermocouple
probe accuracy0.03°C at (0.05°F) R -50° to 1,550°C
(-58° to 2,822°F)±2.2°C (±3.96°F) ± thermocouple
probe accuracy0.08°C (0.15°F) S -50° to 1,720°C
(-58° to 3,128°F)±2.2°C (±3.96°F) ± thermocouple
probe accuracy0.08°C (0.15°F) B 550° to 1,820°C
(1,022° to 3,308°F)±2.5°C (±4.5°F) ± thermocouple
probe accuracy0.1°C (0.18F) N -260° to 1,300°C
(-436° to 2,372°F)±1.0°C (±1.8°F) ± thermocouple
probe accuracy0.06°C (0.11°F) Internal 10K Thermistor (Temperature)
Range -20° to 70°C (-4° to 158°F) Accuracy ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A of User Manual resolution 0.024°C at 25°C (0.04°F at 77°F); see Plot A of User Manual Drift <0.1°C (0.18°F) per year Logger
Logger Operating Range Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing);
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specificationLoggnig Rate 1 second to 18 hours, 12 minutes, 15 seconds Logging Modes Fixed interval (normal), burst, or statistics Memory Modes Wrap when full or stop when full Start Modes Immediate, push button, date & time, or next interval Stop Modes When memory full, push button, or date & time Restart Mode Push button TIme Accuracy ±1 minute per month at 25°C (77°F), see Plot B of User Manual Power Source Two AAA 1.5 V alkaline batteries, user replaceable, and USB cable Battery Life 1 year, typical with logging rate of 1 minute and sampling interval of
15 seconds or greaterMemory 4 MB (1.6 million measurements, maximum) Download Type USB 2.0 interface Full Memory Download Time Approximately 1.5 minutes LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this rangeSize 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.) Weight 107.5 g (3.79 oz) Environmental Rating IP50 CE The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU). -
SOFTWARE
HOBOware Software
HOBOware software is used for launching, reading out, and plotting data from HOBO® data loggers. With HOBOware, you can also check logger status, filter and export data, save changes to graphs in project files, and scale data with the Linear Scaling and Pulse Scaling data assistants. There are two versions of HOBOware: HOBOware and HOBOware Pro.
Learn more about HOBOware and HOBOware-Pro Features >>
HOBO UX120-014M – 4-Channel Thermocouple Data Logger
$822.80 NZD ex GST

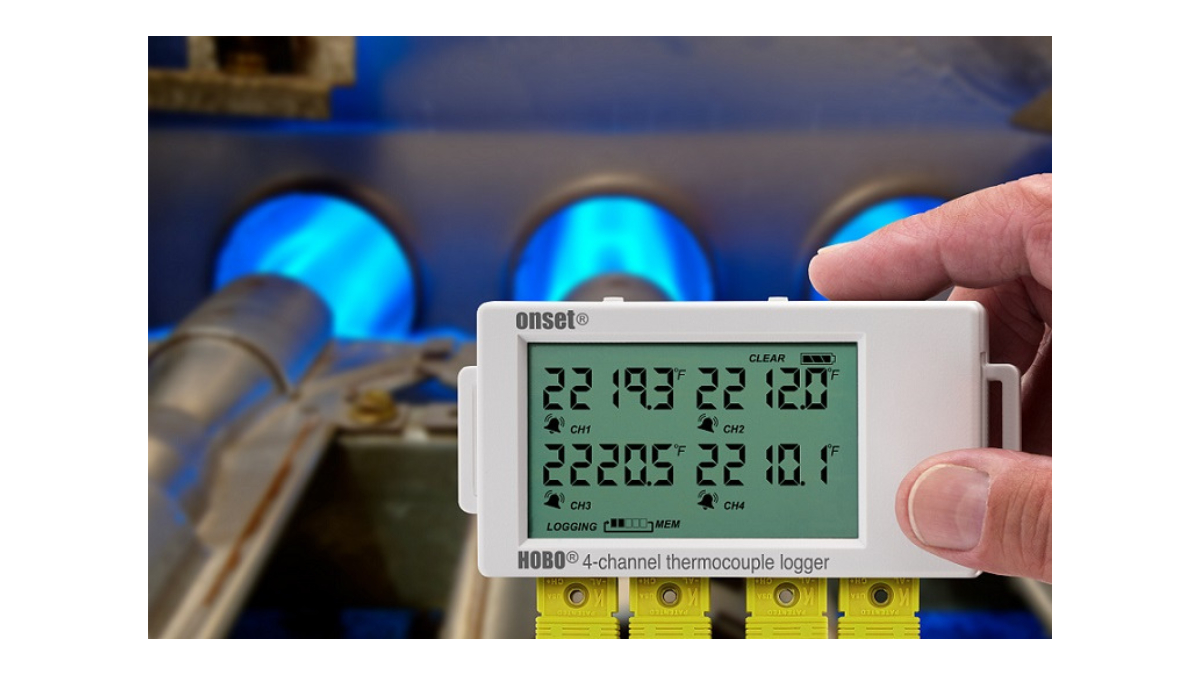

The HOBO UX120 Thermocouple Logger is a four-channel LCD data logger for measuring and recording temperature in a range of monitoring applications. The logger makes it easy and convenient to record temperatures over a broad range (-260 to 1820° C) and can accept up to four J, K, T, E, R, S, B, or N type probes.
