OVERVIEW

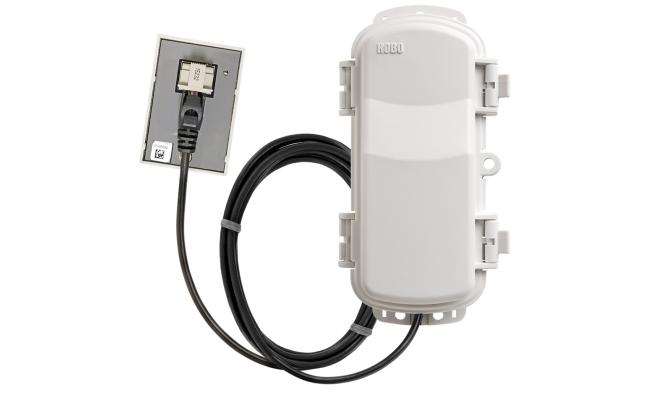

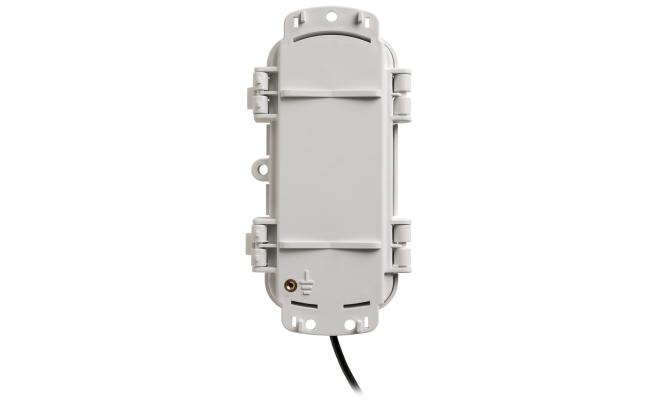

Get secure wireless data transmission with HOBOnet Manager
The HOBOnet Wireless Manager module is installed in an RX3000 station. Data is transmitted wirelessly from sensors across the network to the RX3000 station and then uploaded to LI-COR Cloud IoT platform (formerly HOBOlink).
Highlighted Features
- 922 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors per RX3000
- Plugs into RX3000 Flex Port
Important Information
A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager (RXMOD-RXW-xxx), and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RX-RPTR-xxx) can be added to extend the range.
-
SPECIFICATIONS
Operating Temperature Range -25° to 60°C (-13° to 140°F) Radio Power 12.6 mW (+11 dBm) non-adjustable Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) highWireless Data Standard IEEE 802.15.4 Radio Operating Frequencies RXMOD-RXW-900: 904–924 MHz
RXMOD-RXW-868: 866.5 MHz
RXMOD-RXW-921: 921 MHz
RXMOD-RXW-922: 916–924 MHzModulation Employed OQPSK (Offset Quadrature Phase Shift Keying) Data Rate Up to 250 kbps, non-adjustable Duty Cycle <1% Maximum Number of Motes Up to 50 wireless sensors or 336 data channels per one HOBO RX station Power Source Powered by the RX3000 station Dimensions Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Cable length: 2 m (6.56 ft)Weight Mote: 159 g (5.62 oz) Materials Mote: PCPBT, silicone rubber seal Environmental Rating Mote: IP67, NEMA 6 Compliance Marks See lat page of User Manual -
SENSORS
Onset have a complete range of HOBOnet wireless sensors and external Smart Sensors to suit the HOBO RX3000, RX2100 Range, U30, H21 and H22 Data Logger series.
HOBOnet Manager
$469.70 NZD ex GST
New Zealand dollar ($) - NZD
The HOBOnet Wireless Manager module is installed in an RX3000 station. Data is transmitted wirelessly from sensors across the network to the RX3000 station and then uploaded to LI-COR Cloud IoT platform (formerly HOBOlink).
