OVERVIEW
Features
- Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
- Adjustable reference temperature and temperature coefficient
- Adjustable cell constant and selectable measurement unit
- Automatic / manual temperature compensation and temperature calibration function
- Conductivity and total dissolved solids (TDS) conversion
- Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
- Two (2) salinity calibration curves: NaCl, Seawater
- °C & °F temperature readings
- Auto log data; built-in memory can store up to 500 data
- Auto stable, auto hold, and real-time measurement modes
- Auto shut-off (programmable: up to 30 minutes)
- Monochrome LCD with white LED backlight: 50 x 50 mm
- Phono jack output for connecting the meter to computer (for software upgrade only)
- Powered by 2 x AA batteries
- Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
- Packaged with electrode and calibration solutions in carrying case
- 3 years meter warranty
Meter Kit
EC210-K

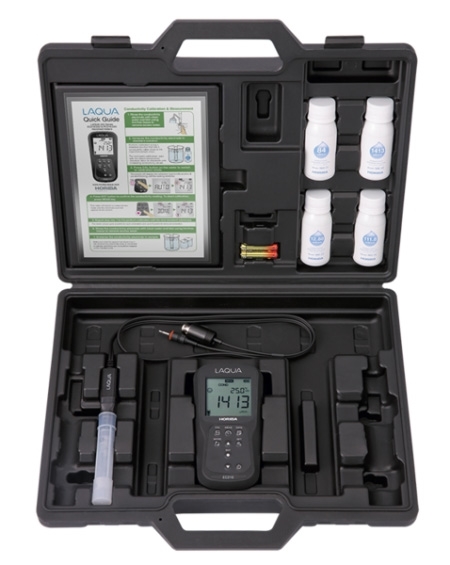

Package Details:

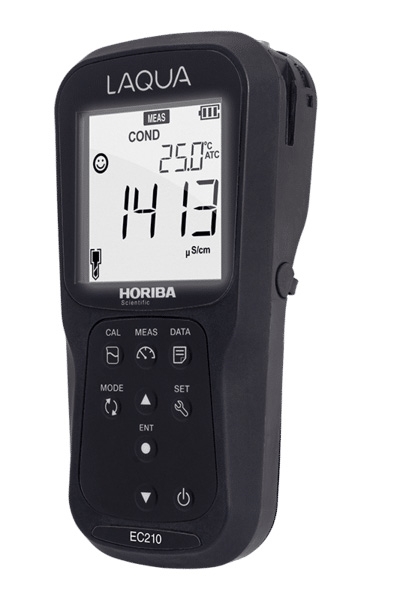

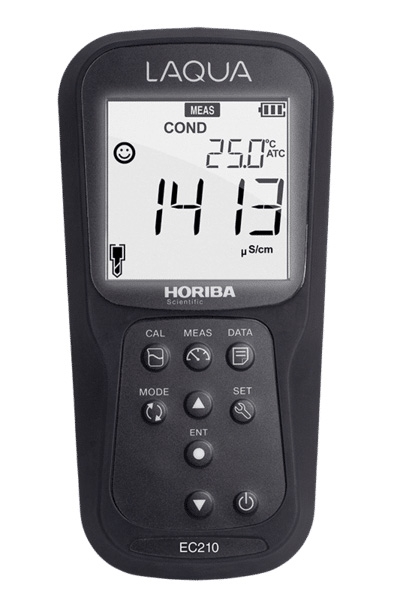

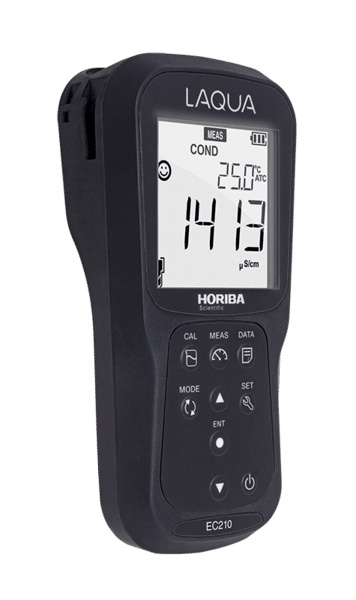

- LAQUAact EC210 Cond/TDS/Res/Sal/Temp meter
- 2 x AA batteries
- Manual and quick guide
- 9383-10D plastic-body, Ti/Pt black conductivity probe (k=1.0) with integrated temperature sensor
- 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm conductivity standard solutions (60ml each)
- Carrying case
Manufactured by HORIBA
-
SPECIFICATIONS
Model
LAQUA EC210
Conductivity/TDS/Res/Sal/Temp (°C/°F)
Conductivity Range …µS/cm to 200.0 mS/cm (k=1.0) Resolution 0.05% full scale Accuracy ±0.6% full scale; ±1.5% full scale > 18.0 mS/cm Reference Temperature 15 to 30 °C (adjustable) Temperature Coefficient 0.00 to 10.00% (adjustable) Cell Constant 0.1, 1.0, 10.0 (adjustable) Calibration Points Up to 4 (Auto) / Up to 5 (Manual) Measurement Unit S/cm, S/m (selectable / auto-ranging) TDS Range …ppm to 100 ppt (TDS factor=0.5) Resolution 0.01 ppm (mg/L) / 0.1 ppt (g/L) Accuracy ±0.1% full scale TDS Curves Linear (0.40 to 1.00), EN27888, 442, NaCl Resistivity Range 0.000 Ω•cm to 20.0 MΩ•cm Resolution 0.05% full scale Accuracy ±0.6% full scale; ±1.5% full scale > 18.0 MΩ•cm Salinity Range 0.0 to 100.0 ppt / 0.00 to 10.00 % Resolution 0.1 ppt / 0.01% Accuracy ±0.2% full scale Salinity Curves NaCl / Seawater Calibration Option Yes Temperature Range -30.0 to 130.0 °C / -22.0 to 266.0 °F Resolution 0.1 °C / °F Accuracy ± 0.5 °C / ± 0.9 °C Calibration Option Yes Memory Data 500 Auto Log Data Yes Measurement Modes Auto Stable, Auto Hold, Real Time Auto Shut-Off Yes (Programmable: up to 30 minutes) Electrode Status Yes (On screen display) Diagnostic Messages Yes Software Upgrade Yes via PC (USB) cable PN 3200779639 Meter Inputs BNC (for conductivity electrode), phono (for temperature sensor) Meter Output phono (for software upgrade only) Display Custom LCD with backlight Housing IP67, shock & scratch resistant, non-slip Power Requirement 2 x AA batteries Battery Life > 500 hours Meter Dimensions 160 (L) x 80 (W) x 40.60 (H) mm Meter Weight Approx. 260g (with batteries) / 216g (without batteries)
Horiba EC210-K – EC, TDS, Salinity, Res, Temp Kit
$968.00 NZD ex GST
New Zealand dollar ($) - NZD
A Portable Meter kit for the measurement of EC/TDS/Salinity/RES/Temp
