OVERVIEW
The Next Generation of Semi-Industrial LoRaWAN Gateway

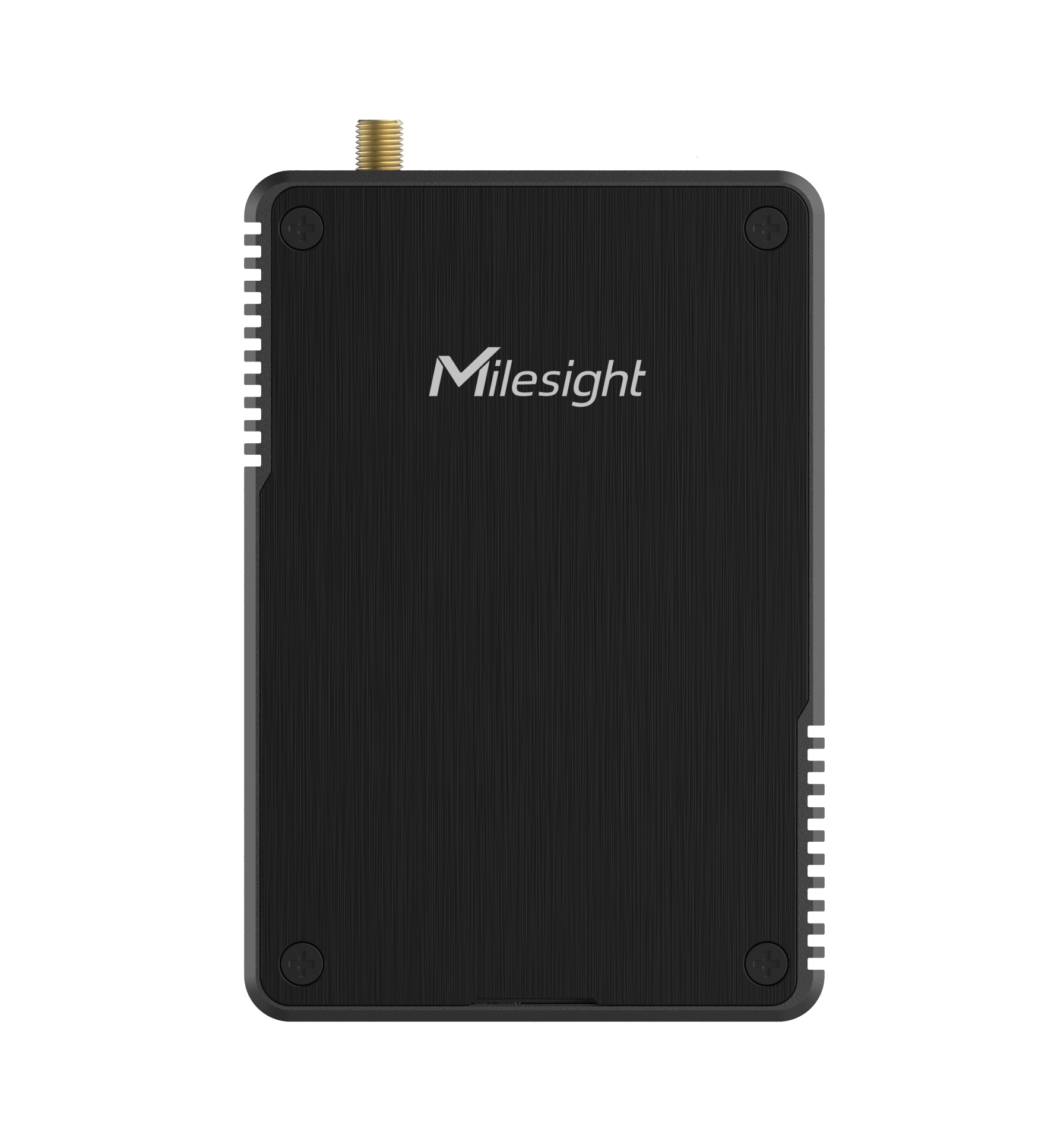

UG56 is a robust 8-channel indoor LoRaWAN® gateway. Adopting SX1302 chip and high-performance quad-core CPU, UG56 supports connection with more than 2000 nodes. UG56 has line of sight up to 15 km and can cover about 2 km in urbanized environment, which is ideally suited to smart building, smart industries and many other indoor applications.
- Industrial-Grade Design
- Listen Before Talk
- Gateway Fleet
- Free Embedded Network Server
- Multiple Backhaul Connectivities with Ethernet, Wi-Fi and cellular
- Global LoRaWAN® Frequency Plans
(RU864/IN865/EU868/AU915 /US915/KR920/AS923)
Penetrating Obstructions Through and Through
Penetrate three floors up and down in the building, and cover a radius of up to 2 km in urban areas and 15 km in rural areas.
Towards Massive Connectivity for IoT Deployments
Adopting Semtech SX1302 LoRa chip, UG56 supports connection with more than 2000 LoRaWAN® nodes.
- 8 Channels
- Quad-core CPU

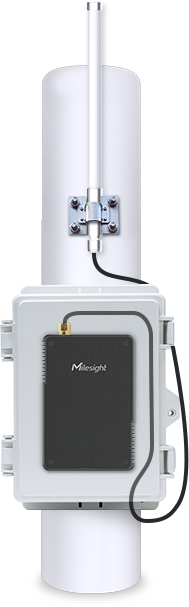

Optimizing Coverage and Placement Concurrently

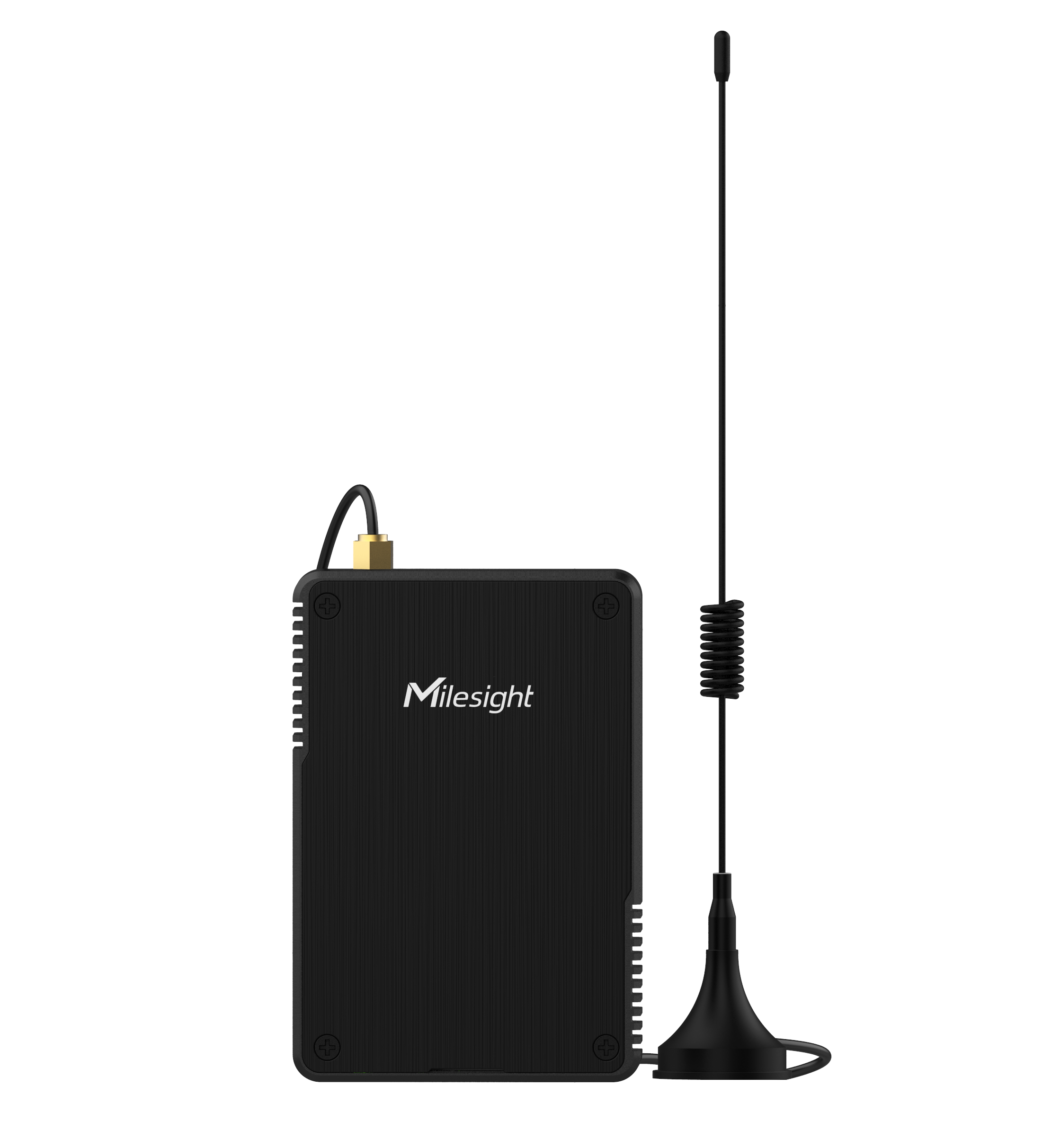

The compact size makes it possible to embed UG56 into a small equipment cabinet. Users can install the magnetic antenna or fiber-glass antenna (optional) at a signal-optimized place to cover more areas.
Features
- Quad-core industrial processor with big memory
- Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
- 8 half-duplex channels
- Rugged metal enclosure for industrial applications
- Desktop or wall mounting
- Multi backhaul connectivity backups with Ethernet, cellular (4G/3G) and Wi-Fi
- DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
- Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
- Compatible with mainstream network servers like The Things Industries, ChirpStack, etc.
- Detect and analyze the noise level and provide intuitive diagram for deployment
- Built-in network server and MQTT/HTTP/HTTPS API for easily integration
- Embedded Python SDK for users secondary development
- Fast and user-friendly programming by Node-RED development tool
Gateway Fleet
The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.
Listen Before Talk
UG56 supports Listen Before Talk which makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission environment.
Multiple Backhaul Connectivities
Stay connected via Ethernet, cellular, and Wi-Fi.
Supporting Multiple Network Servers
Besides the built-in network server, UG56 is also compatible with multiple network server platforms like TTN, ChirpStack, Everynet, Senet, etc.
-
IOT CLOUD
Empowering Device-to-Cloud Connection
The Milesight IoT platform seamlessly integrates LoRaWAN® sensors and controllers with the robust security of AWS infrastructure, ensuring your data’s safety. This integration simplifies the monitoring and control of remote assets by transforming real-time and historical data into intuitive dashboard widgets. You can access your projects remotely and stay informed with real-time alerts via email and mobile, ensuring you never miss critical updates. Interact with our Live Demo Dashboard here >>
For a reliable and user-friendly IoT cloud solution, choose Milesight IoT Cloud.
Learn more here >>
-
SPECIFICATIONS
Hardware System
CPU Quad-core 1.3 GHz, 64-bit ARM Cortex-A35 Memory 512 MB DDR3 RAM Flash 8 GB eMMC Extendable Storage 1 × Micro SD Slot (Internal) LoRaWAN
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female) Channel 8 (Half/Full-duplex) Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 Sensitivity -140 dBm Sensitivity @292bps Output Power 27 dBm Max Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C LBT Support Ethernet Interface
Port 1 × RJ45 (PoE PD supported) Physical Layer 10/100 Base-T (IEEE 802.3) Data Rate 10/100 Mbps (Auto-Sensing) Interface Auto MDI/MDIX Mode Full or Half Duplex (Auto-Sensing) Wi-Fi Interface
Antenna Internal Antenna Standards IEEE 802.11b/g/n, 2.4 GHz Mode AP or Client mode Security WPA/WPA2 authentication, WEP/TKIP/AES encryption Tx Power 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) [email protected] GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) [email protected] GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) [email protected] GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) [email protected] GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) Cellular Interface (Optional)
Antenna Internal Antenna SIM Slot 1 (Mini SIM-2FF) Others
Reset Button 1 × RST (Internal) Console Port 1 × Type-C LED Indicators 1 × SYSTEM, 1 × LoRa Built-in Watchdog, Timer Software
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud Reliability WAN Failover App Python SDK, Node-RED Power Supply
Power Input 1. 1 × 802.3 af PoE Input 2. 5V, 2A by Type-C Port Physical Characteristics
Ingress Protection IP30 Housing & Color Metal, Black (Non-cellular Version) or Blue (Cellular Version) Dimensions 110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in) Installation Desktop, Wall Mounting Environmental
Operating Temperature -20°C to +60°C (-4℉ to +140℉) Storage Temperature -40°C to +85°C (-40℉ to +185℉) Ethernet Isolation 1.5 kV RMS Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉
Milesight Industrial LoRaWAN® Gateway UG56
Price range: $451.00 through $667.70 NZD ex GST
The UG56 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications.
