OVERVIEW
Its not the heat, it’s the humidity
Monnit Commercial Humidity Sensors remotely monitor RH with a +/- 3% accuracy (between 10–90% RH), temperature, and dew point in facilities or enclosures. If the humidity exceeds your specified limits, these scientific-grade sensors instantly alert you via text, email, or call for swift correction.
The Wireless Humidity Sensors measure the RH at the device. The sensor returns RH and temperature values to the iMonnit Online Sensor Monitoring and Notification System. The system calculates dew point from the data and stores all three data points in the online system where the data can be reviewed and exported as a data sheet or graph. Notifications can be set up through iMonnit to alert you when defined thresholds are met or exceeded.

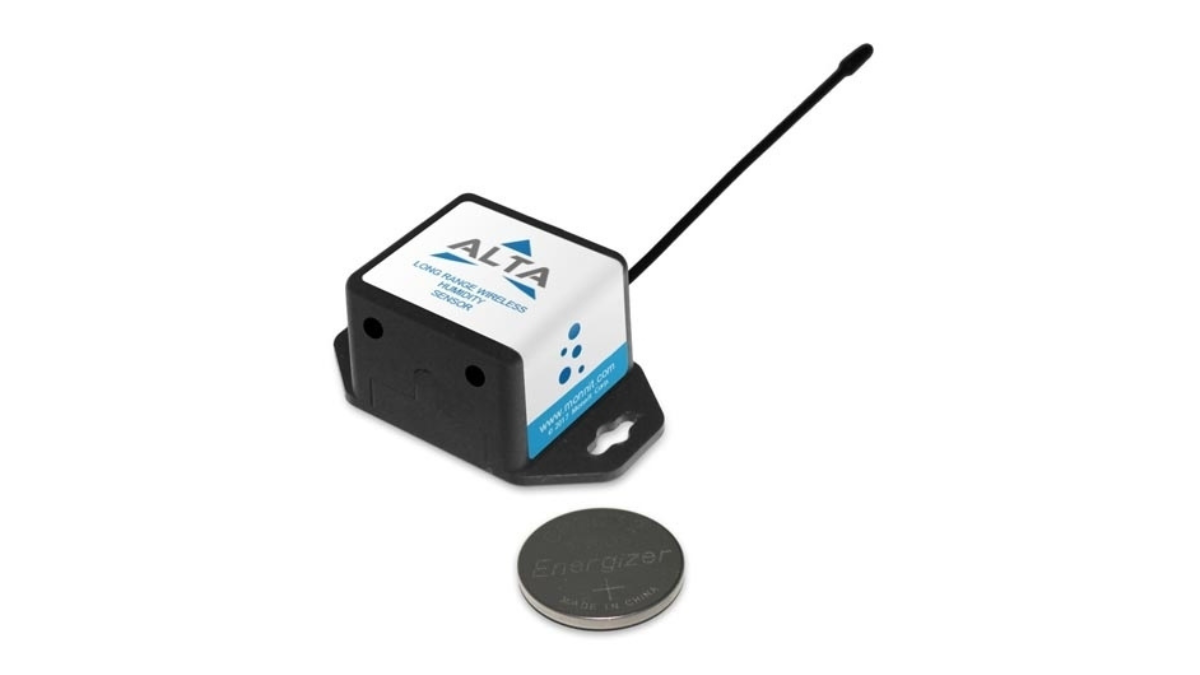

This sensor come standard with a coin cell battery and has a typical battery life of approximately 2 years.
Features
- Impressive wireless range of up to 1,200 feet through walls
- Frequency-hopping spread spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates
- Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
- Stores 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle)
- 10-minute heartbeats = ~ 22 days
- 2-hour heartbeats = ~ 266 days
Applications
- Greenhouse and grow house humidity monitoring
- Agriculture environmental monitoring
- Art gallery and museum environmental monitoring
- Humidor monitoring
- General weather and environmental monitoring
Optional Monnit Wall Mount Enclosure Kit
An aesthetically pleasing enclosure suitable for wall mounting the Commercial Humidity Wireless Sensor
-
GATEWAY
Gateway Options for Seamless IoT Data Communication
Monnit offers a range of gateway options designed to facilitate wireless sensor data communication within IoT networks. These gateways, serve as crucial conduits for transmitting sensor data to the iMonnit software platform and play a pivotal role in ensuring seamless and efficient data transmission for IoT applications.
Click here to explore the diverse range of gateway devices available >>
-
SOFTWARE
Manage Your Monnit Sensors with iMonnit Cloud-based Software
Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.
OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.
Click here to explore the software options >>
-
SPECIFICATIONS
Supply Voltage 2.0-3.8 VDC1 Current Consumption 0.2 μA (sleep mode), 0.7 μA (RTC sleep), 570 μA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode) Operating temperature range (board circuitry and coin cell) -7°C to +55°C (20°F to +131°F) Optimal battery temperature range (coin cell) +10°C to +50°C (+50°F to +122°F) Accuracy ± 2% under normal conditions (0%?80% RH)2 RH operating range 0-100% RH)2 RH response time 8 sec (tau 63%)2 Data Logging Data logs 2000 to 4000 readings if the gateway connection is
lost (non-volatile flash, persists through the power cycle):
– 10-minute heartbeats = ~ 22 days
– 2-hour heartbeats = ~ 266 daysWireless range 1,200+ ft non-line-of-sight Security Encrypt-RF® (256-bit key exchange and AES-128 CTR) Weight 0.7 ounces Certifications 900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02), and EN 60950
1 Hardware cannot withstand negative voltage. Please take care when connecting a power device.
2 View charts on the last page for more information.

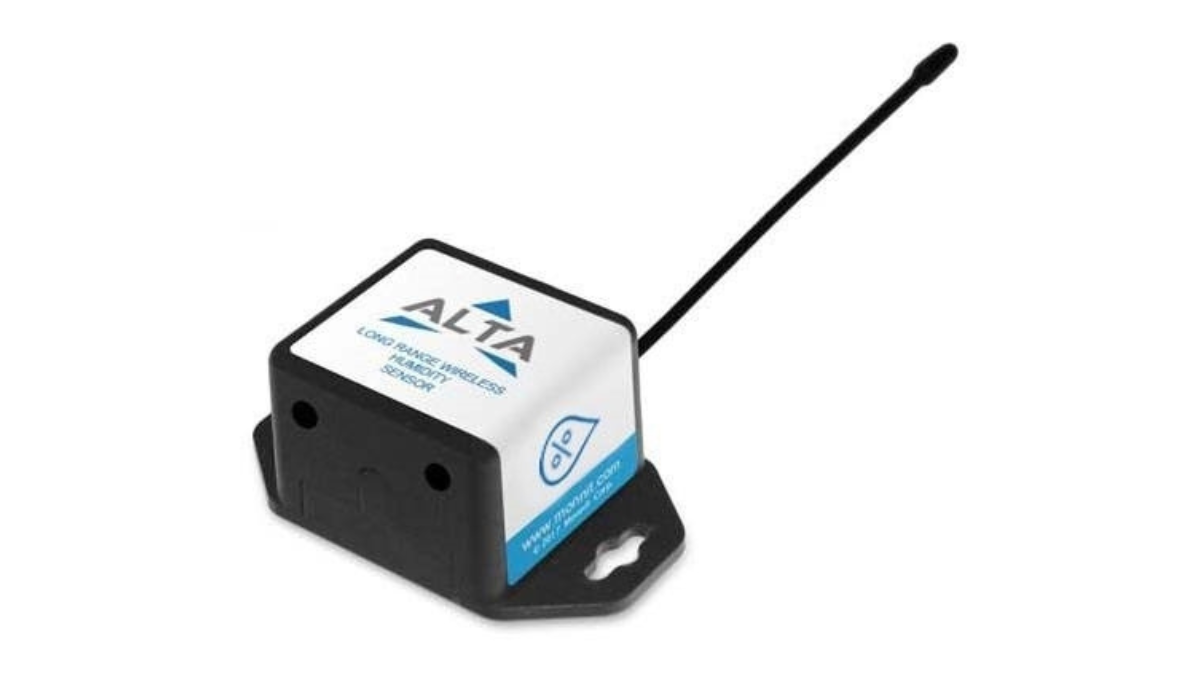

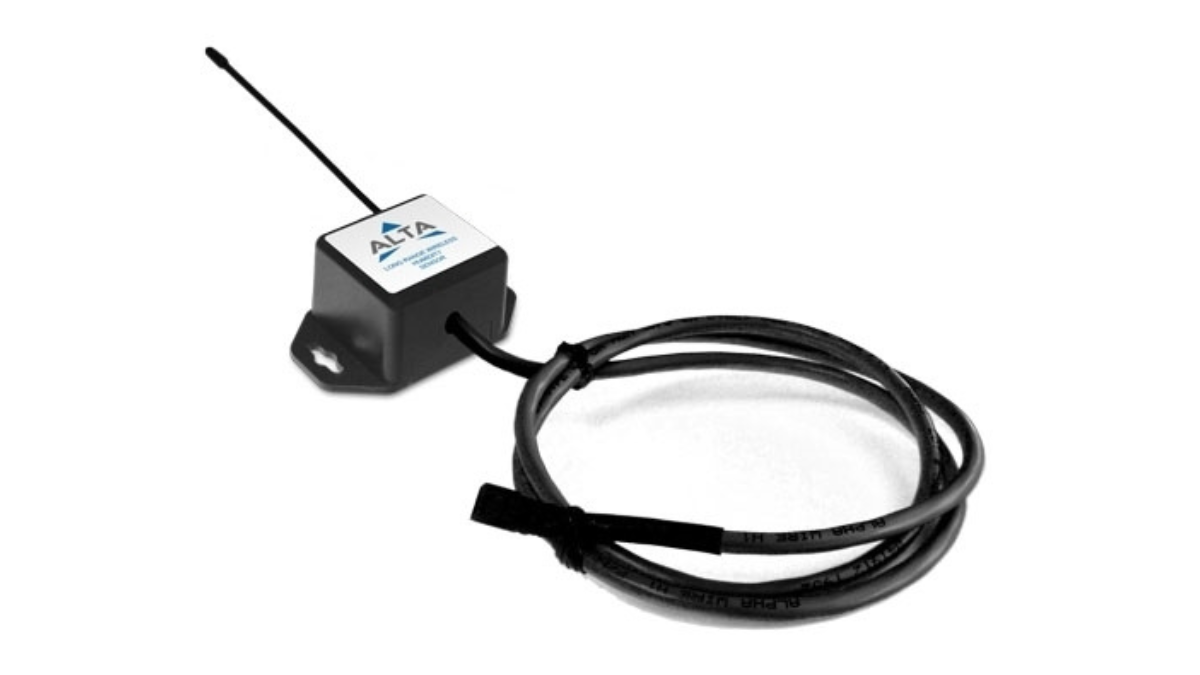

Monnit Commercial Temperature/Humidity Wireless Sensor
$326.70 NZD ex GST
Remotely monitor RH with a +/- 3% accuracy (between 10–90% RH), temperature, and dew point in facilities or enclosures. If the humidity exceeds your specified limits, these scientific-grade sensors instantly alert you via text, email, or call for swift correction
NOTE: Gateway Required for Operation – Refer to Tab Below
