Monitor humidity remotely and get notified fast when it breaches preset limits.

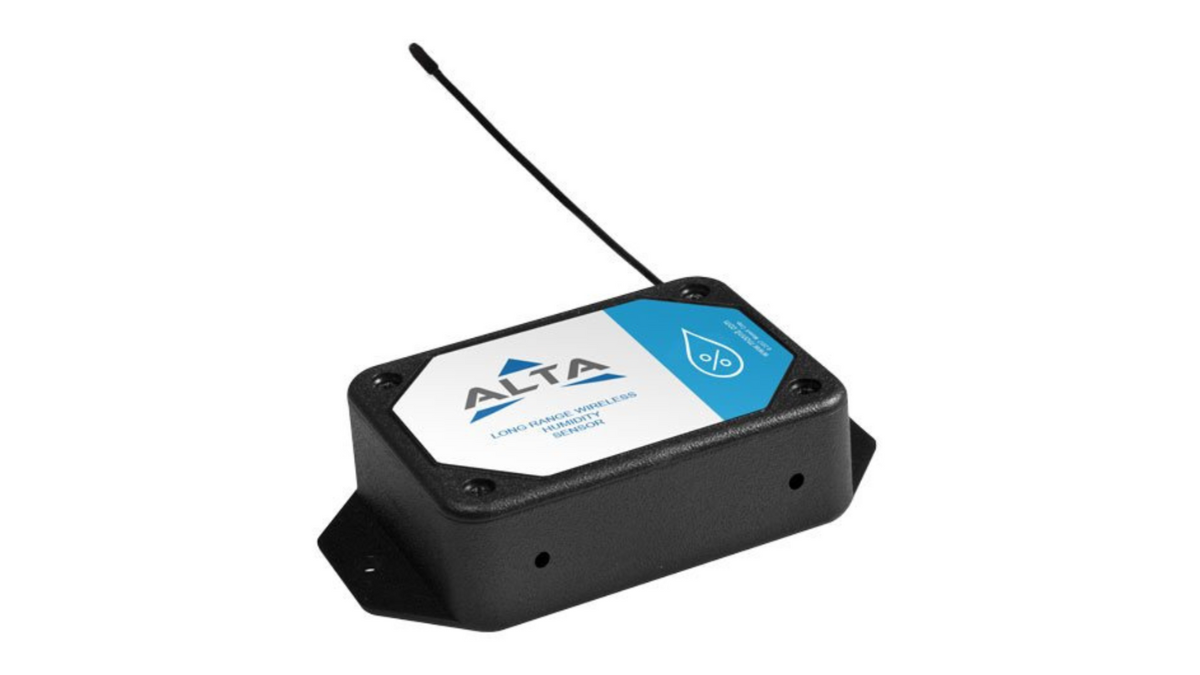

Monnit’s Enterprise Wireless Humidity Sensor measures the relative humidity (RH) of the air within a room or enclosure.

Whether it’s artifacts or data, you know that maintaining a relative humidity (RH) between 40–60% percent can be the difference between proper preservation and irreversible loss.

This Humidity Sensors remotely monitors RH with a +/- 3% accuracy (between 10–90% RH), temperature, and dew point in facilities or enclosures. If the humidity exceeds your specified limits, these scientific-grade sensors alert you via text, email, or call for swift correction in real time.

Its not the heat, it’s the humidity

Monnit’s Wireless Humidity Sensor measures the RH at the device. The sensor returns RH and temperature values to the iMonnit Online Sensor Monitoring and Notification System. The system calculates dew point from the data and stores all three data points in the online system where the data can be reviewed and exported as a data sheet or graph. Notifications can be set up through iMonnit to alert you when defined thresholds are met or exceeded.

This sensor can be customised to yours needs with optional 3 – 25’ leads and seven-month NIST certification. Additionally, two replaceable 1.5 V AA-sized batteries are included with up to 10 years battery life.

Features:

• Impressive wireless range of up to 1,200 feet through walls
• Frequency-hopping spread spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Over-the-air updates
• Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
• Stores 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle)
  • 10-minute heartbeats = ~ 22 days
  • 2-hour heartbeats = ~ 266 days

Applications

• Greenhouse and grow house humidity monitoring
• Agriculture environmental monitoring
• Art gallery and museum environmental monitoring
• Humidor monitoring
• General weather and environmental monitoring

Gateway Options for Seamless IoT Data Communication

Monnit offers a range of gateway options designed to facilitate wireless sensor data communication within IoT networks. These gateways, serve as crucial conduits for transmitting sensor data to the iMonnit software platform and play a pivotal role in ensuring seamless and efficient data transmission for IoT applications.

Click here to explore the diverse range of gateway devices available >>

Manage Your Monnit Sensors with iMonnit Cloud-based Software

Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.

OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.

Click here to explore the software options >>



Supply voltage	2.0 – 3.8 VDC (5.0-12 VDC using power supply)1
Current consumption	0.2 μA (sleep mode), 0.7 μA (RTC sleep), 570 μA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode)
Operating temperature range (board circuitry and batteries)	-18°C to 50°C (0°F to 122°F) using alkaline -40°C to 80°C (-40°F to 176°F) using lithium
Optimal battery temperature range (AA)	+10°C to +45°C (+50°F to +113°F)
Accuracy	± 2% under normal conditions (0%?80% RH)2
RH operating range	0-100% RH2
RH response time	8 sec (tau 63%)2
Data logging	Data logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through the power cycle): – 10-minute heartbeats = ~ 22 days – 2-hour heartbeats = ~ 266 days
Wireless range	1,200+ ft non-line-of-sight
Security	Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Weight	3.7 ounces
Certifications	900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02), and EN 60950

¹ Hardware cannot withstand negative voltage. Please take care when connecting a power device.
² View charts on the last page for more information
