OVERVIEW
Protect your equipment, inventory, and personnel with Monnit standard temperature sensors
Global enterprises trust Monnit Enterprise Standard Temperature Sensors to protect equipment, inventory, and personnel. This sensor sends readings to iMonnit Online Wireless Sensor Monitoring and Notification system in degrees Fahrenheit or Celsius based upon your configurations. When the temperature exceeds preset thresholds, these sensors issue an alert via text, email, or call.
The Temperature Sensor uses a type Negative Temperature Coefficient (NTC) thermistor to measure temperature. It is accurate to ± 1° C (± 1.8° F) and accuracy can be increased by user calibration to ± 0.25° C (± 0.45° F).
Monitor the temperature of virtually anything
The Enterprise Standard Temperature Sensor outputs the ambient temperature in degrees Fahrenheit or Celsius. The sensor’s programmed to sleep for a user-given time interval (heartbeat) and then wake up. Then, it sends power to the NTC thermistor and waits for it to stabilize to convert the analogue data, mathematically compute the temperature, and transmit the data to the gateway. The sensor’s processor is programmed to calculate the temperature based on an internal data table. The Temperature Sensor also implements and configures a variable resistor over specified temperature ranges to reduce error. An industry-leading 25-month NIST certification is available on leaded Monnit Temperature Sensors.
This sensor comes with two replaceable AA sized batteries and the sensor has a typical battery life of up to 10 years. It can also be customised with an additional probe in lengths ranging from 3 – 100 ft.
Features:
- Impressive wireless range of up to 1,200 feet through walls
- Frequency-hopping spread spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates
- Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
- Stores 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle)
- 10-minute heartbeats = ~ 22 days
- 2-hour heartbeats = ~ 266 days
Applications:
- Ambient temperature monitoring
- Environmental monitoring
- Smart machines and facilities
- HVAC operation and testing
- Data centre and server room monitoring
- Logistics and warehousing
- Facility and property management
- Morgues and mortuaries
-
GATEWAY
Gateway Options for Seamless IoT Data Communication
Monnit offers a range of gateway options designed to facilitate wireless sensor data communication within IoT networks. These gateways, serve as crucial conduits for transmitting sensor data to the iMonnit software platform and play a pivotal role in ensuring seamless and efficient data transmission for IoT applications.
Click here to explore the diverse range of gateway devices available >>
-
SOFTWARE
Manage Your Monnit Sensors with iMonnit Cloud-based Software
Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.
OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.
Click here to explore the software options >>
-
SPECIFICATIONS
Battery1 2x 1.5V AA Alkaline, 1500 mAh, (standard)
2x 1.5V AA Lithium, 3000 mAh, (optional)Battery Life 10+ years expected External line-power option2 Input voltage: 5.0-12.0 V
Power jack: 2.1 x 5.5 mm barrel, center positiveOperating temperature range (non-leaded measurement range)3 -18°C to 55°C (0°F to 130°F) – AA Alkaline Batteries
-25°C to 60°C (-13°F to 140°F) – AA Lithium L91 Batteries
0°C to 40°C (32°F to 104°F) – US 5V Power Supply
10°C to 40°C (50°F to 104°F) – International 5V Power SupplyWireless antenna type 1/4-wave, 20 gauge wire whip, 3.5″ (900/868MHz), 7″ (433MHz) Weight 3 oz. (85.05 g) with no lead
3.7 oz. (105 g) with 0.9 m (3.0′) lead1. Hardware cannot withstand negative voltage. Please take care when inserting and removing batteries.
2. Batteries will provide backup power in the case the external power is removed.
3. Operating below 0°C (-32°F) degrees will reduce battery life.Temperature Measurement Range – Leaded sensor -40°C to 125°C (-40°F to 257°F) Range – Non-leaded sensor:
– ALTA Commercial
– ALTA Enterprise
– ALTA Industrial** Limited to operational range of sensor body
10°C to 50°C (50°F to 122°F)
-18°C to 55°C (-4°F to 122°F) using alkaline batteries
-40°C to 85°C (-40°F to 185°F)Accuracy @ 25°C (77°F) ± 1°C (±1.8°F) Calibrated accuracy ± 0.25°C (± 0.45°F) Resolution 0.1°C (0.18°F) Response Time 50 seconds (10 second time constant)1 Leaded Probe Transducer Type 10 KOhm NTC Thermistor (? = 3455 K) Tip Dimension 5.00 mm (0.197″) diameter by 35 mm (1.38″) Tip Material Type 304 stainless steel Cable Material Waterproof high-temperature ABS with EMF shielding Cable Diameter 3.45 mm (0.136″) Cable Length Standard: 0.9m (3′)
Optional: 1.5m (5′), 3m (10′), 7.5m (25′), 50m (50′), 30m (100′)ALTA Wireless Data Logging Sensor logs 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through power cycling): 10-minute Heartbeats = ~22 days – 2-hour Heartbeats = ~266 days Wireless Protocol ALTA Proprietary Frequency-Hopping Spread Spectrum (FHSS) Wireless Transmission Power (EIRP) 50 mW (900MHz), 25 mW (868 MHz), 10 mW (433 MHz) Wireless Range 2,000+ ft. through 18+ walls with ALTA XL® Gateway Security Encrypt-RF® (256-bit key exchange and AES-128 CTR) General Battery Voltage Range 2.0 to 3.8 VDC Operating Altitude (Non-pressurized Environmental) -15.2 to 1,982 m (-50 to 6,500 ft)2 Storage Altitude (Non-pressurized Environments) -15.2 to 3,048 m (-50 to 10,000 ft)2 Operating Humidity 5 to 85% RH (non-condensing) Certifications 900 MHz sensors: FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz sensors tested and comply with: EN 55032: 2015/A11:2020; EN 55035:2017/A11:2020; ETSI EN 300 220 V3.2.1 (2018-06); ETSI EN 301 489-3 V2.2.0. (2021-11); and ETSI EN 303 645. All sensors tested and comply with: EN 61010-1 and EN 60950 and meet RoHS 2015/863 and REACH 224 (June 2022), according to IEC 63000:2016/AMD1:2022. 1. Response time defined as five time constants for 99.3% of actual temperature.
2. Operating and storage altitude without DC power supply is -30.48 to 9144 m (-100 to 30000 ft).

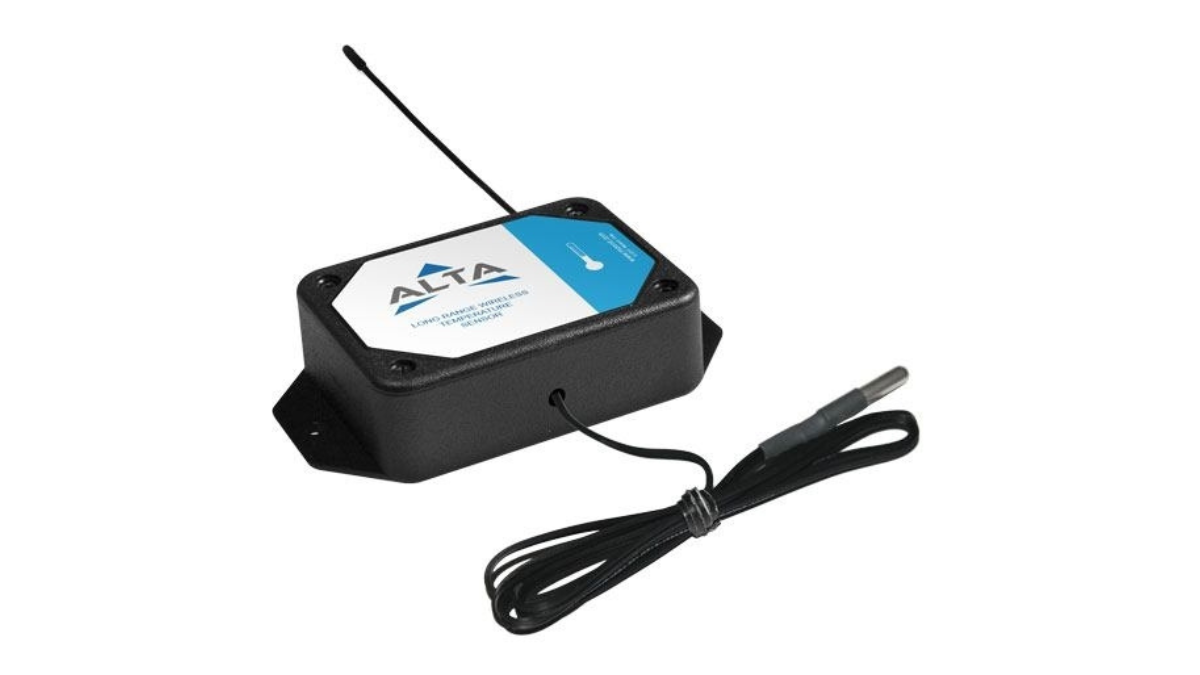

Monnit Enterprise Standard Temperature Wireless Sensor
Price range: $289.30 through $467.50 NZD ex GST
Accurately measures temperatures between -40 to +125°C in ambient conditions or with an external probe.
NOTE: Gateway Required for Operation – Refer to Tab Below
