Get alerted when light levels are too high or too low

This Monnit mount-and-monitor meter measures light intensity in lux (the SI unit of illumination, equal to one lumen/square meter). These light meters have a measurement range of 0–83,000 lux (indoor range) that spans from moonlit nights to full daylight. If lux measurements move outside of user-set limits, these meters alert designated users via text, email, or call for correction.

See assets in a good light

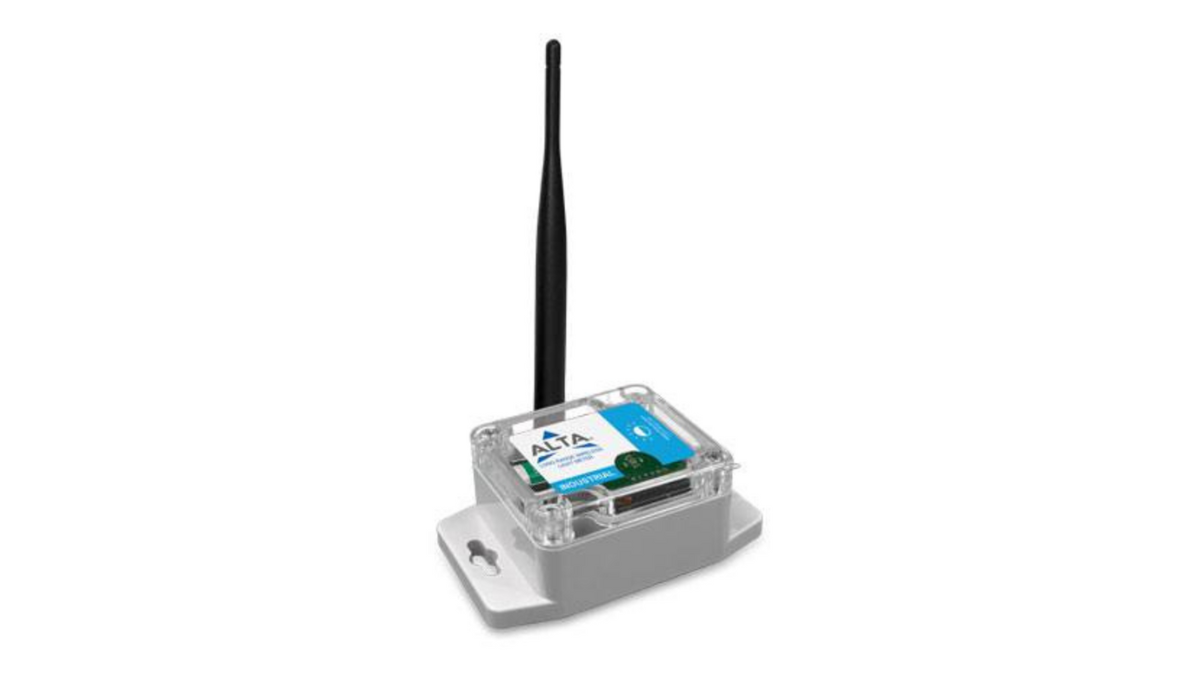

Monnit’s Wireless Light Meter uses a highly sensitive photo-diode to detect and measure the intensity of light around the device from 0-82,000 lux (luminescence/unit area). The sensor is also capable of alerting upon detection of a change in lighting conditions. The sensor returns a value in ‘lux’ to the iMonnit Online Sensor Monitoring and Notification System. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. Notifications can be set up through the online system to alert the user when light is present or not with the ability to only notify within time of day parameters.

The sensor comes with an industrial battery included with the life of up to 7 years.

All industrial sensors are enclosed in a reliable, weatherproof NEMA-rated enclosure that are constructed for both indoor and outdoor use. These rugged enclosures protect the sensor circuitry against;

• Falling dirt
• Wind-blown dust
• Rain, sleet, snow, splashing water, and hose-directed water
• Ice formation on the enclosure
• Increased resistance to corrosion

Features

• Impressive wireless range of up to 1,200 feet through walls
• Frequency-hopping spread spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Over-the-air updates
• Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
• Stores 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle)
  • 10-minute heartbeats = ~ 22 days
  • 2-hour heartbeats = ~ 266 days

Applications

• Greenhouse and agricultural light monitoring
• Facilities lighting/energy management
• Parking garage / lot light monitoring
• Business light monitoring
• Outdoor light monitoring

Gateway Options for Seamless IoT Data Communication

Monnit offers a range of gateway options designed to facilitate wireless sensor data communication within IoT networks. These gateways, serve as crucial conduits for transmitting sensor data to the iMonnit software platform and play a pivotal role in ensuring seamless and efficient data transmission for IoT applications.

Click here to explore the diverse range of gateway devices available >>

Manage Your Monnit Sensors with iMonnit Cloud-based Software

Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.

OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.

Click here to explore the software options >>



Supply voltage		2.0-3.8 VDC (3.0-3.8 VDC using power supply) *
Current consumption		0.2 μA (sleep mode), 0.7 μA (RTC sleep), 570 μA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode)
Operating temperature range (board circuitry and battery)		-40°C to +85°C (-40°F to +185°F) **
Included battery	Max temperature range	-40° to +85°C (-40° to +185°F)
	Capacity	1800 mAh
Max Light Level		0-82,000 Lux
Integrated memory		Up to 512 sensor messages
Wireless range		1,200+ ft non-line-of-sight
Security		Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Weight		4.7 ounces
Enclosure rating		NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and weather proof
UL rating		UL Listed to UL508-4x specifications (File E194432)
Certifications		900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950

* Hardware cannot withstand negative voltage. Please take care when connecting a power device.
** At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
