Sensing your sensors

Monnit’s Industrial Resistance Sensors can be retrofitted quickly to scientific sensors or equipment, such as batteries, that are used in the process and manufacturing sectors.

A popular transducer interface solution for passive resistance loads up to 250K Ohms, Monnit’s sensors awake at user-specified times to monitor a resistive load. Captured analogue data is then calculated into a resistance measurement. If the observed resistance deviates from user-set thresholds, the user is notified via text, email, or call. Instant alerts prevent unnecessary (and costly) downtime or the loss of research and irreplaceable samples.

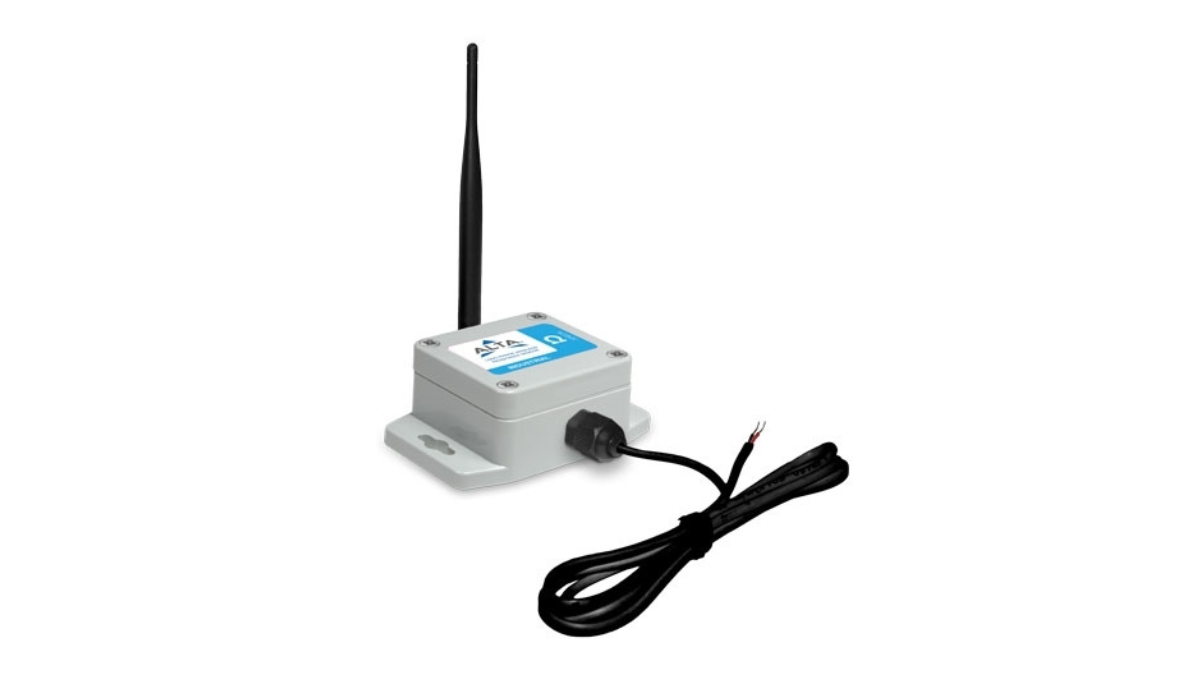

Monnit’s Industrial Resistance Sensor reads the resistance across any resistive load and reports back the measured resistance. The resistance sensor leads are meant to connect to passive devices only, connecting the sensor leads to any voltage or power source may damage the sensor. It is programmed to sleep for a user-given time interval (heartbeat) and then wake up, convert the analogue data, mathematically compute the resistance, and transmit the data to the gateway, where it is then logged into the cloud service. The user can configure defined thresholds and have the system alert on threshold breaches.

This sensor comes with an industrial battery included with the life of up to 7 years.

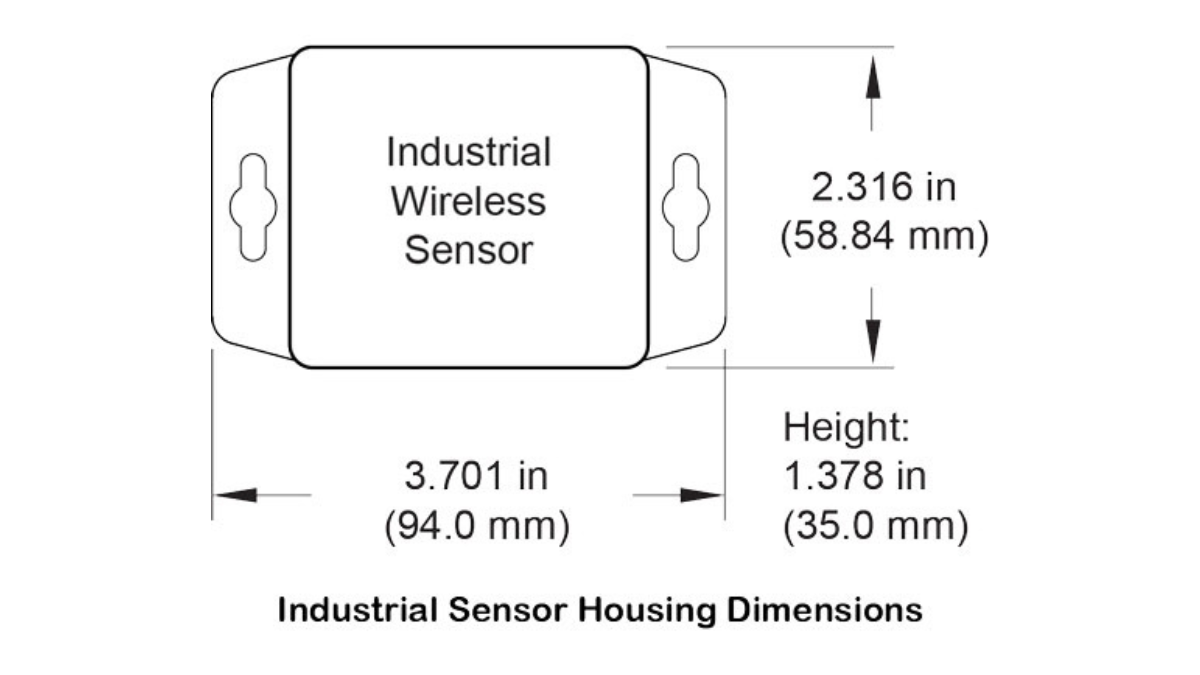

All industrial sensors are enclosed in a reliable, weatherproof NEMA-rated enclosure that are constructed for both indoor and outdoor use. These rugged enclosures protect the sensor circuitry against;

• Falling dirt
• Wind-blown dust
• Rain, sleet, snow, splashing water, and hose-directed water
• Ice formation on the enclosure
• Increased resistance to corrosion

Features

• Impressive wireless range of up to 1,200 feet through walls
• Frequency-hopping spread spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Over-the-air updates
• Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
• Stores 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle)
  • 10-minute heartbeats = ~ 22 days
  • 2-hour heartbeats = ~ 266 days

Applications

• Resistance Monitoring
• Battery Monitoring
• Transducer Interfacing
• Elevator Monitoring

Gateway Options for Seamless IoT Data Communication

Monnit offers a range of gateway options designed to facilitate wireless sensor data communication within IoT networks. These gateways, serve as crucial conduits for transmitting sensor data to the iMonnit software platform and play a pivotal role in ensuring seamless and efficient data transmission for IoT applications.

Click here to explore the diverse range of gateway devices available >>

Manage Your Monnit Sensors with iMonnit Cloud-based Software

Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.

OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.

Click here to explore the software options >>



Supply Voltage		2.0 – 3.6 VDC *
Current Consumption		0.2 μA (sleep mode), 0.7 μA (RTC sleep), 570 μA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode)
Operating Temperature Range (Board Circuitry and Battery)
Included Battery	Max Temperature Range:	-40°C to +85°C ( -40°F to +185°F ) **
	Capacity:	1500 mAh
Resistive Range (in Ohms)		0 – 250000
Specific Resistive Ranges (in Ohms)		0 – 5600, 5600 – 250000
Resolution (in Ohms)		65535 Unique Values Per Specific Range (16 bit): ~3.4, ~125
Accuracy		+/- 3% FS of Specific Range
User Calibrated Accuracy		+/- 2% FS of Specific Range****
Lead Wire Length		1ft. (12 in.)
Wireless Range		1,200+ ft non-line-of-sight
Security		Encrypt-RF® (256-bit key exchange and AES-128 CTR)
Weight		5.1 oz.
Enclosure Rating		NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and weather proof
UL Rating		UL Listed to UL508-4x specifications (File E194432)
Certifications		900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950

*Hardware cannot withstand negative voltage. Please take care when connecting a power device.
**At temperatures above 100°C, it is possible for the board circuitry to lose programmed memory.
