OVERVIEW
Get an Immediate Alert as Soon as it Detects Water/Conductive Liquids
Detect liquid presence anywhere with the Monnit Power-over-Ethernet (PoE) Water Rope Sensor. Its conductive polymer rope uses two wires for accurate detection, transmitting data to iMonnit as soon as it detects water or any conductive liquid. The rope dries quickly for immediate reuse, making it a reliable sensor ideal for immediate action. Easily expand the detection rope up to 100 feet with additional 10-foot sections.
When liquid contacts a sensor’s conductive polymer rope, the sensor instantly activates its onboard RF radio and transmits water presence data to the iMonnit Sensor Configuration and Management software. This facilitates a near-instantaneous text, call, or email alert.
The Power-over-Ethernet (PoE) Sensor products measure various conditions (environmental, power, access). All devices come with flexible settings – including notifications, alerts, reports, and maps – can be customized in the iMonnit online sensor management interface.
Monnit’s Power over Ethernet sensors integrate with a building’s PoE network; it can also be used with a standard Ethernet infrastructure and powered via an optional AC adapter.
Features
- Power-over-Ethernet ready (injector hardware required)
- Embedded LEDs for transmission & online condition indicators
- 50,000 sensor message memory (non-volatile)
- Modbus TCP & SNTP v1 interface capabilities
- No PC required (managed through apps and smart devices)
- Remote update capable w/automatic updates
Applications
- Freezer and Coolers
- HVAC Operation & Testing
- Environmental Monitoring
- Smart machines and smart structures
-
SOFTWARE
Manage Your Monnit Sensors with iMonnit Cloud-based Software
Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.
OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.
Click here to explore the software options >>
-
SPECIFICATIONS

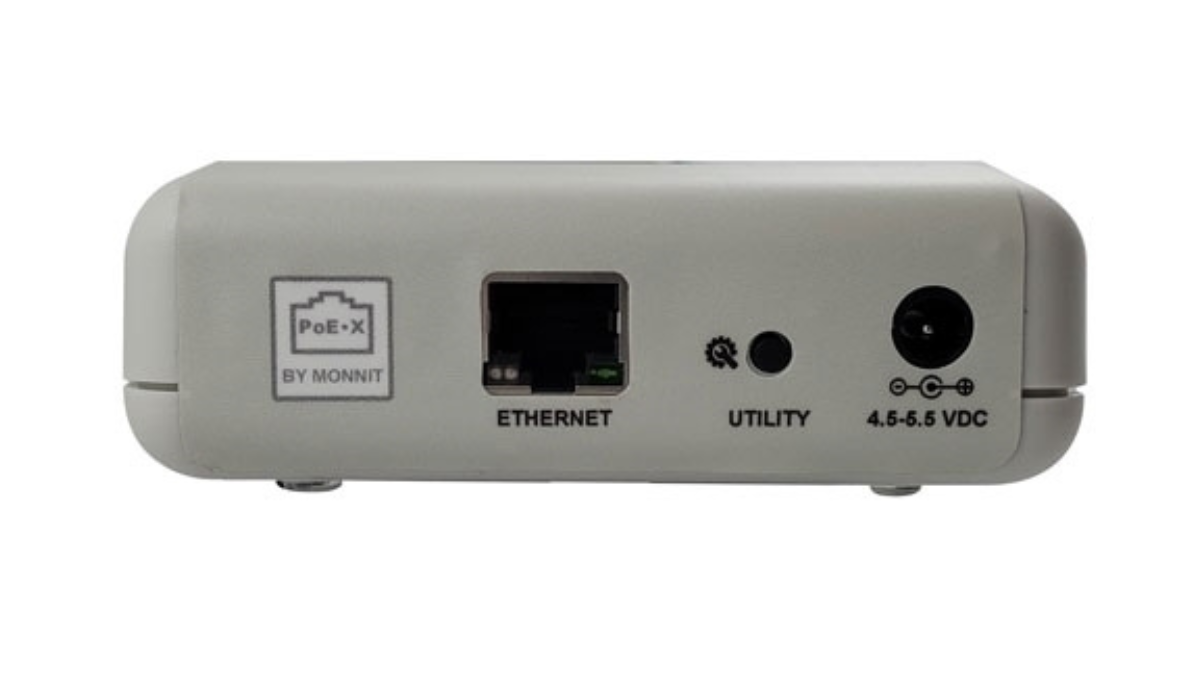

Part Number MNS-P-C1-WS-WR Communication Hardware 10 / 100 Ethernet Controller PoE Requirements Class 1 Device (500mW) IEEE Standard Compliance 802.3AF-2003 / 802.3AT-2009 Class 1 Operation Full- and Half-Duplex Cross-Over Correction Automatic MDI / MDI-X Protocols Supported DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP Input Power Supplementary Power Requirement Cable Connector RJ45 Supplementary Power Connector 2.1 x 5.5 mm barrel jack, center positive Device Memory Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored.) Forced Communication / Reset Hardware Button Operating Temperature -20 to +60°C (-4 to 140°F) Storage Temperature -40 to +85°C (-40 to 185°F) Sensor Specifications
Weight 10.66 oz. (302 g) with 10 ft. (3.05 m) rope Water Detection Rope Specification
Material PE + alloy lead Rope Weight 30g / meter Pull Force Limit 60 kg Fire Resistance Plenum rated Cable Diameter 5.5 mm Maximum Exposed Temperature 75° C (167° F) Cable length 10 fl. (120 in.) included (expandable to 100 fl.)
Monnit PoE•X Water Rope Sensor
$704.00 NZD ex GST
You can deploy these devices in restrooms above your server room, below leak-prone boilers or in attics. They are also ideal for high-traffic walkways where standing water threatens safety.
