OVERVIEW
The Tzone TempU07 series are multi-use USB data loggers built for cold chain monitoring and documentation. Designed for operations where temperature and humidity conditions need to be tracked, recorded, and reported without friction.
Both models record key statistics and display them on an intuitive LCD screen, showing recording status, alarm conditions, and running data at a glance. When a trip or storage period is complete, plug the logger into any USB port and the device automatically generates a PDF report and CSV file ready for compliance records or quality review. No dedicated software needed.
Logging parameters, alarms, and start delay are all programmable, giving teams control over how and when recording begins.
Both models suit a broad range of cold chain applications including pharmaceutical transport, food and produce logistics, warehouse storage, and container shipments.
Features
- Multi-use and reprogrammable for repeat deployments
- Temperature and humidity measurement and recording

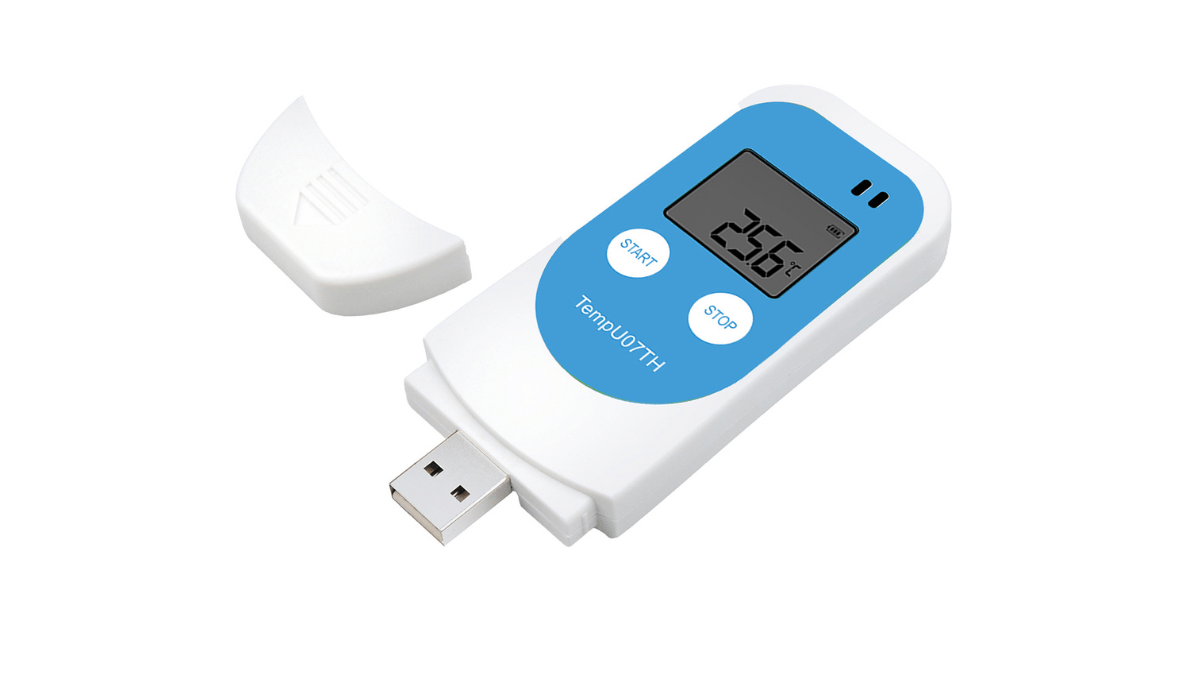

- Built-in USB connector for direct data download
- Automatically generates PDF report and CSV file on connection, no software required

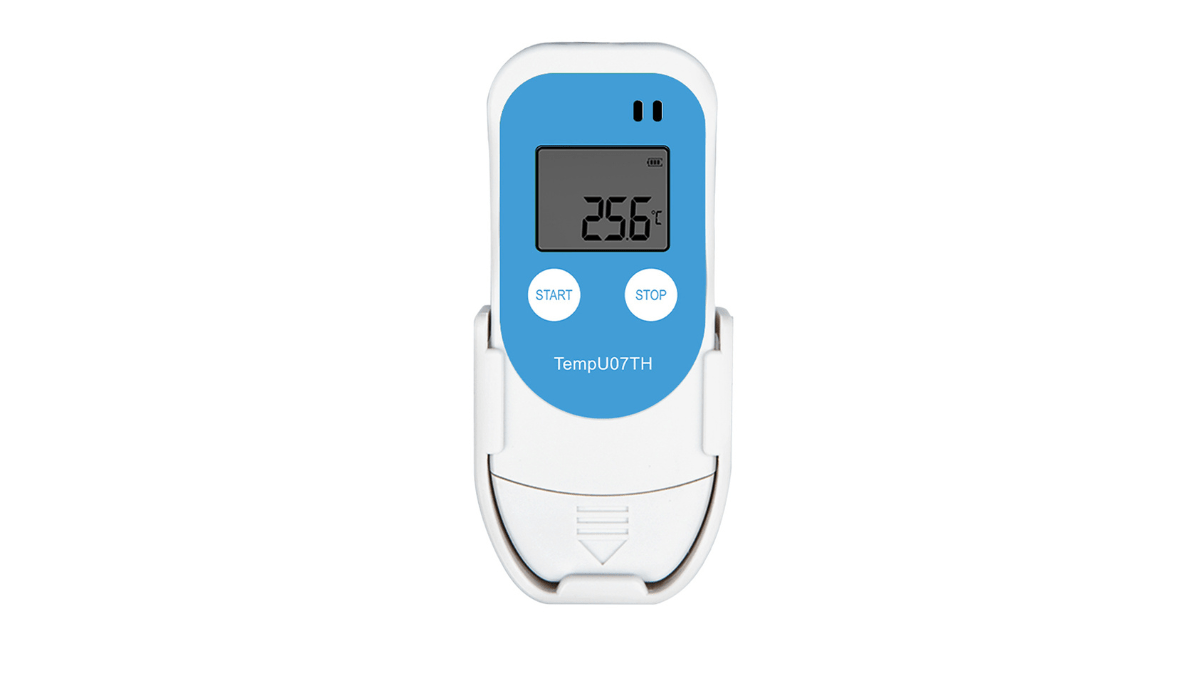

- Intuitive LCD screen displays recording statistics, alarm status, and running status
- Programmable logging parameters, alarms, and start delay
- Built-in magnetic holder for quick, secure placement

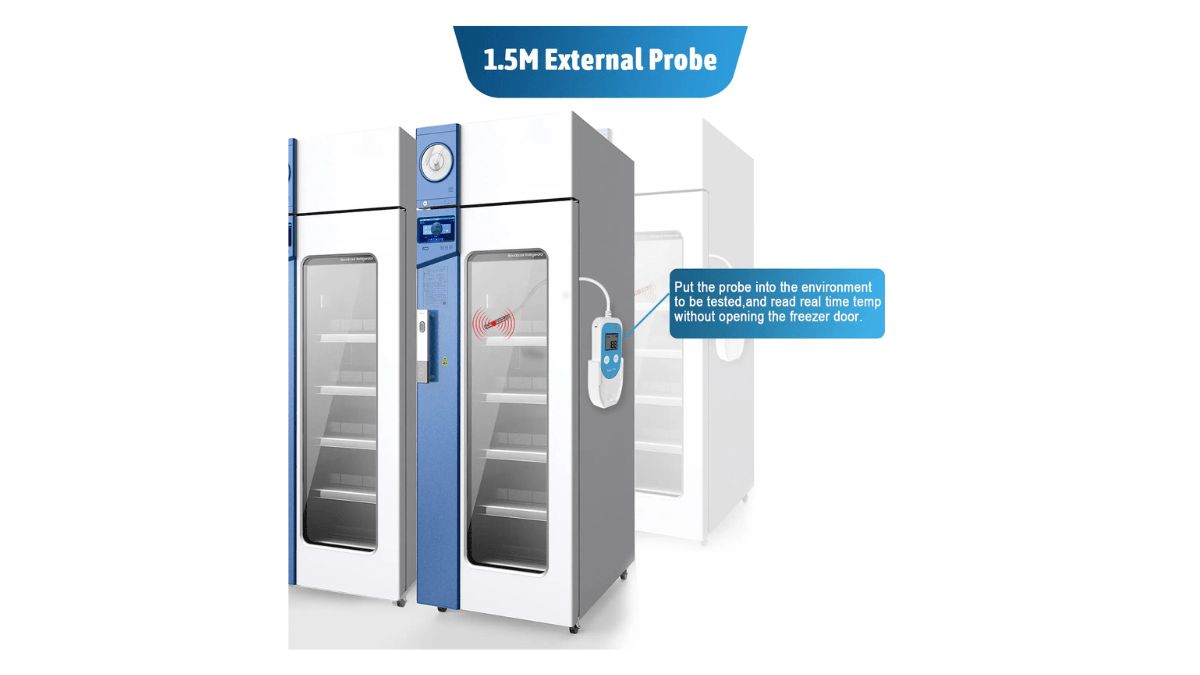

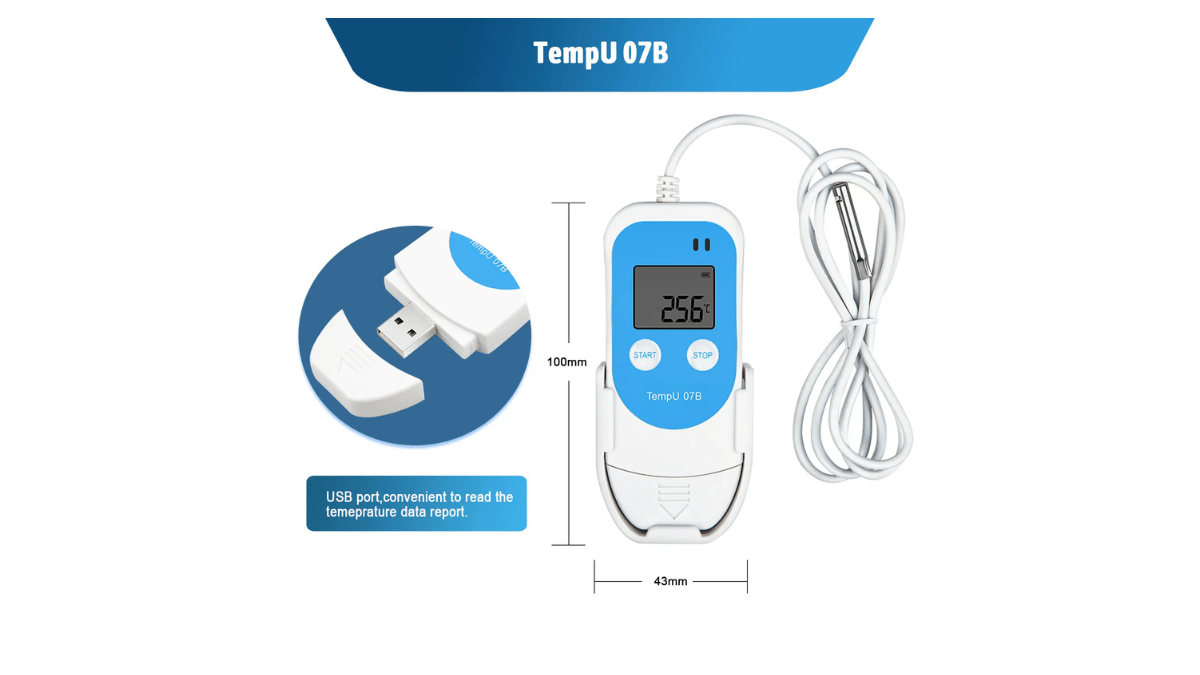

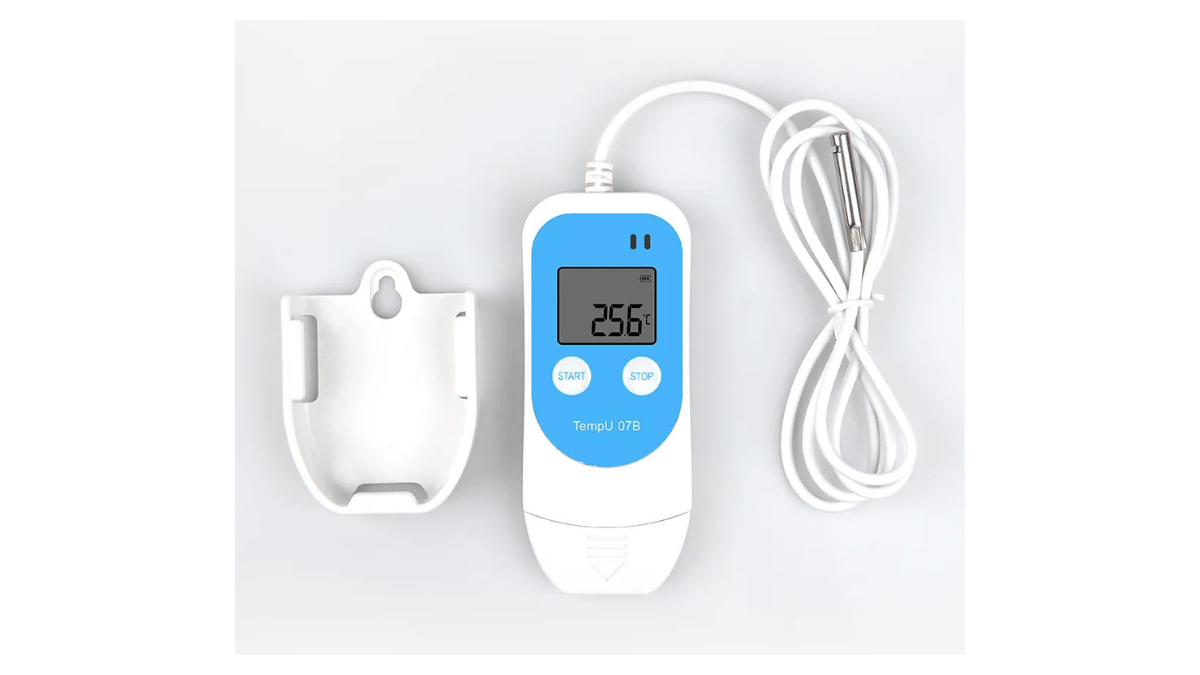

- TempU07B only: External probe for flexible sensor placement
-
SPECIFICATIONS
TempU07TH
TempU07B

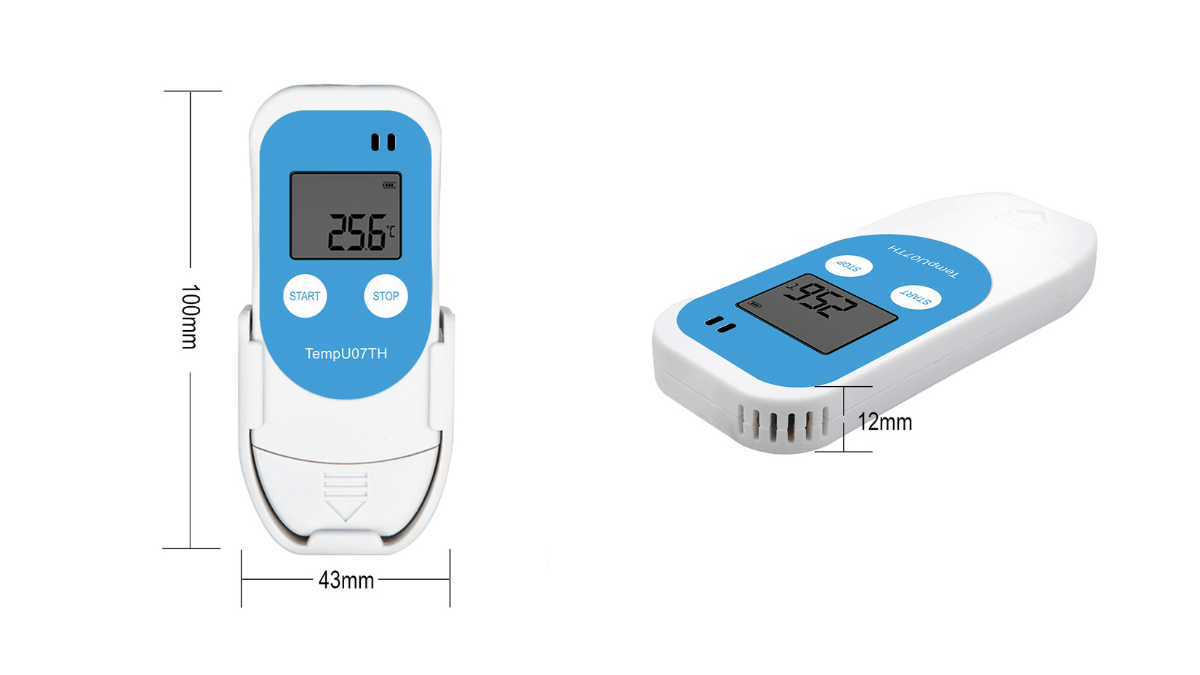

Dimensions 100mm x 43mm x 12mm 100mm x 43mm x 12mm Weight 54g 85g Waterproof Level IP65 IP65 Measuring Range Humidity: 5%~95%RH,
Temp: -30°C ~ +70°CProbe:
Temp: -40°C-85°C; Humidity: 5%RH -95%RHAccuracy ±3%RH; ±0.3°C ±3%(10%-90%), ±5%(other);
±0.3°C(0-60°C), ±0.6°C(other)Alarm Rang Programmable high or low alarm limit for each channel
[Default: <2°C or >8°C, <40%RH or >80%RH]User configurable Memory Capacity 34560pcs 34560 Start Mode Button Start or Timed Start Button Start or Timed Start Resolution 0.1%RH typically, 0.1°C 0.1%RH typically, 0.1°c Usage Multiple times Multiple times Battery Life More than 2 years (Normal temperature 25°C) More than 2 years (Normal temperature 25°C) Recording Interval 10 seconds to 99 hours adjustable [Default: 10 minutes] User configurable (10 seconds to 99 hours) Start Delay Programmable (0~72 hours) [Default: 30 minutes] User configurable (0- 72 hours) Alarm Delay Programmable (0~99 hours) [Default: 10 minutes] User configurable (10 seconds to 99 hours) Communication Interface USB 2.0 USB 2.0 Form of Report PDF report and CSV file are optional(Default: PDF and CSV) PDF and CSV format data report
Tzone TempU07 Temperature RH Data Logger
Price range: $81.40 through $84.70 NZD ex GST
Compact USB data loggers designed for cold chain compliance. The TempU07 range records temperature and humidity conditions across transport and storage applications, generating audit-ready PDF and CSV reports automatically, no software required.
