OVERVIEW
Get the most out of your machines with the HE100 Series
The HE100 series of vibration monitoring units comes with analogue vibration sensors in high-quality stainless steel design and two-wire technology.
HE100
The Type HE100 vibration monitoring unit is used to measure and monitor absolute bearing vibrations in machines in line with DIN ISO 10816.
Features
- Operating principle: The two-wire system
- Measurement value: The effective value (rms) of the vibration velocity in mm/s, in accordance with DIN ISO 2954
- Analogue current output: Interference-free DC signals from 4…20 mA, proportional to the measuring range of the monitoring unit
- Approvals: CE, ATEX, EAC, EAC Ex, IEC, IEC Ex, UL
HE101
The Type HE101 vibration monitoring unit is used to measure and monitor absolute bearing vibrations and bearing temperatures in machines in line with DIN ISO 10816.
Features
- Measurement value: The effective value (rms) of the vibration velocity in mm/s, in accordance with DIN ISO 2954.
- Measurement value: The temperature in °C.
- Analogue current output: Interference-free DC signals from 4…20 mA, proportional to the measuring range of the monitoring unit
- Approvals: CE, ATEX, EAC, EAC Ex, IEC, IEC Ex, UL
HE102
The Type HE102 vibration monitoring unit is used to measure and monitor absolute bearing vibrations in machines.
Features
- Operating principle: The two-wire system
- Measurement value: The effective value (rms) of the vibration acceleration in g (rms)
- Analogue current output: Interference-free DC signals from 4…20 mA, proportional to the measuring range of the monitoring unit
- Approvals: CE, ATEX, EAC, EAC Ex, IEC, IEC Ex, UL
HE103
The Type HE103 vibration monitoring unit is used to measure and monitor absolute bearing vibrations in machines in line with DIN ISO 10816. What is special about the HE103 is the extended rms averaging time of 60 s, which decreases stochastic environment influences like e.g. the wind.
Features
- Operating principle: The two-wire system
- Measurement value: The effective value (rms) of the vibration velocity in mm/s, in accordance with DIN ISO 2954
- Analogue current output: Interference-free DC signals from 4…20 mA, proportional to the measuring range of the monitoring unit
- Approvals: CE, ATEX, EAC, EAC Ex, IEC, IEC Ex, UL
- Averaging Time T = 60 s

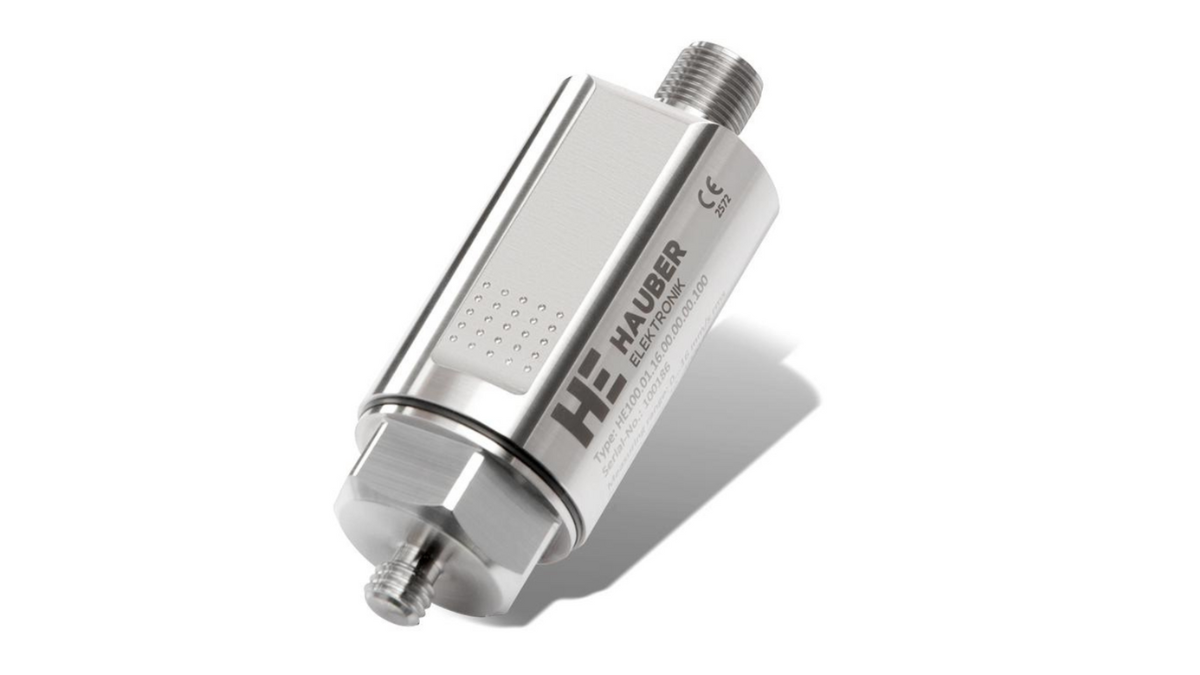

Hauber HE100 Series – Vibration Monitoring Sensor
$0.00 NZD ex GST
Hauber’s HE100 series of Vibration Sensors are for condition monitoring of machinery bearings.
