More accurate data with digital filtering

The 12-bit Voltage Input Adapter interfaces with sensors providing 0-5 VDC signals to act as a smart sensor with compatible data loggers. This adapter features both a non-switched input and a battery-saving switched input that extends the life of external batteries. It also provides a trigger signal for controlling power to attached external sensors, while offering digital filtering which improves measurement accuracy with 32 readings/sample.

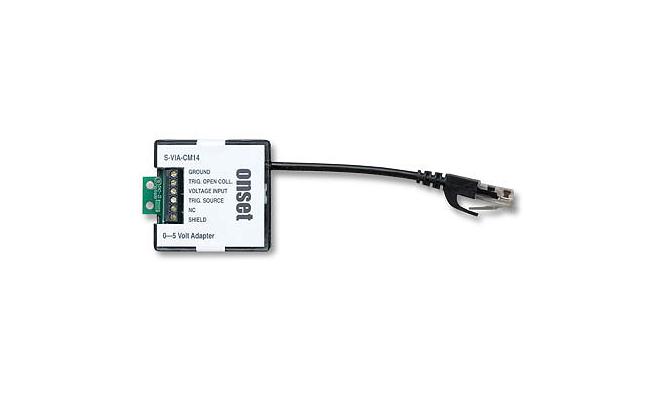

The 12-Bit 0-5 Volt Input Adapter is used for measuring voltage levels and provides a trigger source voltage for powering external sensors and an open collector trigger. The input adapter has a plug-in modular connector that allows it to be added easily to a logger.

Features

• 12-bit resolution
• Digital filtering improves measurement accuracy with 32 readings/sample—4-20 mA adapter has 60 Hz noise rejection
• Measurement averaging over logging interval further enhances accuracy
• Screw terminal for connecting to sensors
• HOBO RX3000 and U30 stations have room for two adapters
• Use with HOBO USB Micro Station and HOBO MicroRX Station requires Smart Sensor Consolidator Box (S-ADAPT-6) and an extension cable
• Represents one data input channel

Outdoor use requires sensor to be within a weatherproof enclosure.





Measurement Range	0 to 5 V
Accuracy	±0.025 V (±0.5% full scale) over full temperature range of -40°C to 75°C (-40°F to 167°F)
Resolution	±1.221 mV
Input Impedance	1 MΩ
Maximum Input Voltage	30 V
Sensor Trigger: Open Collector	Maximum sink current: 115 mA On time: 12.7 ms ±3%
Sensor Trigger: Source	Voltage: 2.5 V ±2.4%; maximum current: 1 mA On time: 12.7 ms ±3%
Operating Temperature Range	-40°C to 75°C (-40°F to 167°F)
Housing	Plastic case; must be placed inside logger enclosure to protect from direct exposure to the weather
User Connection	Six-position screw terminal strip (16–30AWG); shielded cable recommended with outside diameter of 3.2 to 3.8 mm (0.125 to 0.150 in.)
Dimensions	4.5 x 4.8 x 1.6 cm (1.8 x 1.9 x 0.6 in.)
Weight	25 g (0.88 oz)
Number of Data Channels*	1
Measurement Averaging Option	Yes
Digital Filtering	Automatic digital filtering with 32 readings/sample in 2.4 ms
Bits per Sample	12
Length of Smart Sensor Network Cable*	14 cm (5.5 in.)
CE	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

* A single station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital
communications portion of the sensor cables), although available space in the enclosure may limit the number of
sensors you can attach.
