OVERVIEW
Monitor Air Temperature and Humidity with Industry-Leading Precision

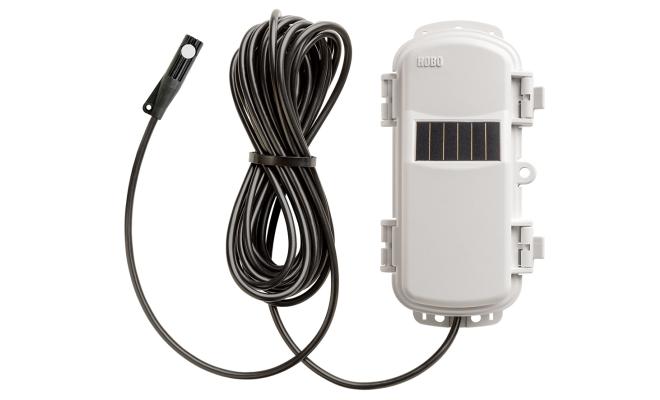

The HOBOnet Wireless Temperature and Relative Humidity Sensor provides a cost-effective and scalable solution for web-enabled monitoring of air temperature and humidity. HOBOnet Wireless Sensors communicate data directly to the RX3000 weather station or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset’s innovative cloud-based software platform.
Highlighted Features
Sensor Features
- High accuracy: ± 0.2°C (± 0.36°F) and ± 2.5% RH
- Robust RH sensor withstands extended use in high-humidity environments
Wireless Features- 922 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors per RX3000
- Simple button-push to join the HOBOnet wireless network
- Onboard memory to ensure no data loss
- Powered by rechargeable AA batteries and built-in solar panel
Important Information
A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager, and a HOBOnet Wireless Sensor, OR one HOBO MicroRX Station (which has an integrated HOBOnet Wireless Manager) and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RXW-RPTR-xxx or RXW-RPTR-B-xxx) can be added to extend the range.
-
SPECIFICATIONS
Sensor
Temperature
RH
Measurement -40°C to 75°C (-40°F to 167°F) 0–100% RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the
maximum RH sensor error by an additional 1%Accuracy ±0.25°C from -40° to 0°C (±0.45°F
from -40° to 32°F)
±0.20°C from 0° to 70°C (±0.36°F
from 32° to 158°F)
±0.25°C from 70° to 100°C (±0.45°F
from 158° to 212°F)±2.5% from 10% to 90% RH typical to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical Resolution 0.02°C (0.036°F) 0.01% RH Drift <0.01°C (0.018°F) per year <1% per year typical Response Time (typical, to 90% of change) Without solar radiation shield: 3 minutes, 45 seconds in air moving 1 m/sec
With RS3-B solar radiation shield: 6 minutes, 30 seconds in air moving 1 m/secWithout solar radiation shield: 15 seconds in air moving 1 m/sec
With RS3-B solar radiation shield: 30 seconds in air moving 1 m/secWireless Mote
Operating Temperature Range -25° to 60°C (-13° to 140°F) with rechargeable batteries
-40 to 70°C (-40 to 158°F) with lithium batteriesRadio Power 12.6 mW (+11 dBm) non-adjustable Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) highWireless Data Standard IEEE 802.15.4 Radio Operating Frequencies RXW-THC-900: 904–924 MHz
RXW-THC-868: 866.5 MHz

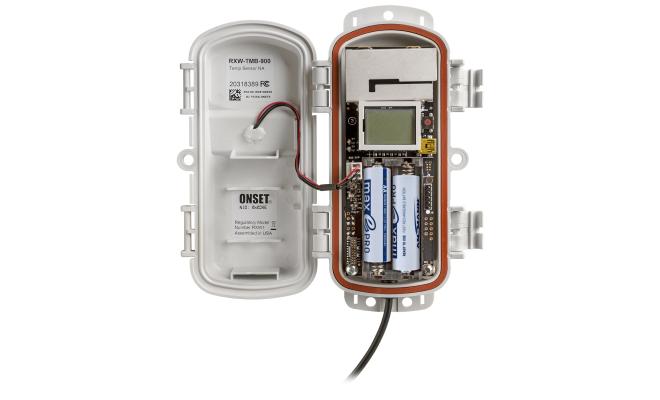

RXW-THC-922: 916–924 MHzModulation Employed OQPSK (Offset Quadrature Phase Shift Keying) Data Rate Up to 250 kbps, non-adjustable Duty Cycle <1% Maximum Number of Motes 50 motes per one RX Wireless Sensor Network Battery Type / Power Source Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F) Battery Life With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life With lithium batteries: 1 year, typical use Memory 16 MB Dimensions Sensor: 45.97 x 11.43 x 10.16 mm (1.81 x 0.45 x 0.40 inches)
Cable length: 2 m (6.56 ft)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)Weight Sensor and cable: 110 g (3.88 oz);
Mote: 223 g (7.87 oz)Materials Sensor: Polyamide
Mote: PCPBT, silicone rubber sealEnvironmental Rating Sensor: Weatherproof: 0 to 100% RH intermittent condensing environments. For best results, the sensor should be mounted inside a protective enclosure, such as a solar radiation shield.
Mote: IP67, NEMA 6Compliance Marks See last page of User Manual -
