OVERVIEW
Receive real time alerts when contact is made or broken
Monnit’s Power-over-Ethernet (PoE) Dry Contact Sensor – the solution to detecting contact between two wired endpoints with ease. This sensor can be integrated easily into existing contact plates or switches, and it transmits data to iMonnit as soon as it detects contact. With the ability to detect both closed and open loops, it alerts whenever contact is made or broken. Users can even receive SMS or email notifications instantly. Stay on top of things with this powerful and configurable sensor.
The Power-over-Ethernet (PoE) Sensor products measure various conditions (environmental, power, access). All devices come with flexible settings – including notifications, alerts, reports, and maps – can be customized in the iMonnit online sensor management interface.
Monnit’s Power over Ethernet sensors integrate with a building’s PoE network; it can also be used with a standard Ethernet infrastructure and powered via an optional AC adapter.
Features
- Power-over-Ethernet ready (injector hardware required)
- Embedded LEDs for transmission & online condition indicators
- 50,000 sensor message memory (non-volatile)
- Modbus TCP & SNTP v1 interface capabilities
- No PC required (managed through apps and smart devices)
- Remote update capable w/automatic updates
Applications
- Barn door monitoring
- Forklift seat switches
- Production line tracking
- Freezer/cooler monitoring
- Button or switch integration
-
SOFTWARE
Manage Your Monnit Sensors with iMonnit Cloud-based Software
Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.
OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.
Click here to explore the software options >>
-
SPECIFICATIONS
Device Specifications

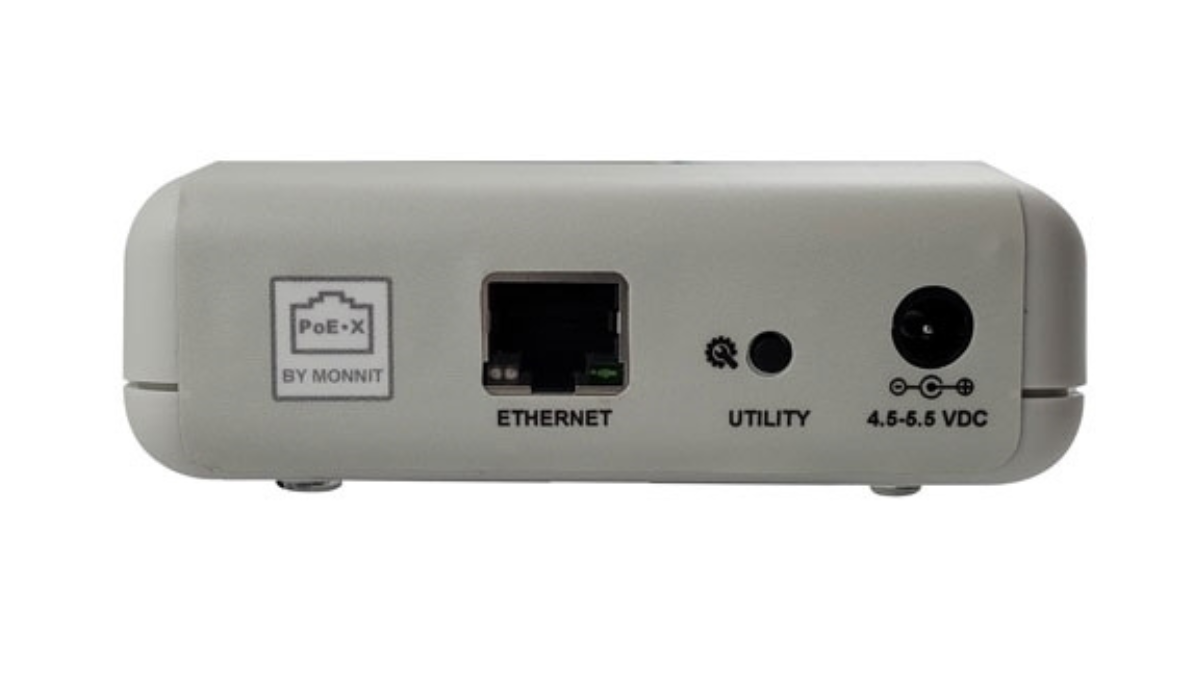

Part Number MNS-P-C1-DC-CF-L03 Communication Hardware 10 / 100 Ethernet Controller PoE Requirements Class 1 Device (500mW) IEEE Standard Compliance 802.3AF-2003 / 802.3AT-2009 Class 1 Operation Full- and Half-Duplex Cross-Over Correction Automatic MDI / MDI-X Protocols Supported DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP Input Power Supplementary Power Requirement Cable Connector RJ45 Supplementary Power Connector 2.1 x 5.5 mm barrel jack, center positive Device Memory Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored.) Forced Communication / Reset Hardware Button Operating Temperature -20 to +60°C (-4 to 140°F) Storage Temperature -40 to +85°C (-40 to 185°F) Sensor Specifications
Lead Wire Length 3 ft. (36 in.) Detection Wires High Impedance Weight 5.06 oz. (143 g)
Monnit PoE•X Dry Contact Sensor
$513.70 NZD ex GST
Monnit’s Wireless Dry Contact Sensors detect if contact is made, or broken, between two wired points. This sensor remotely monitors production line operation, tracks when a forklift’s seat is occupied, or alerts you if a gate was left open.
